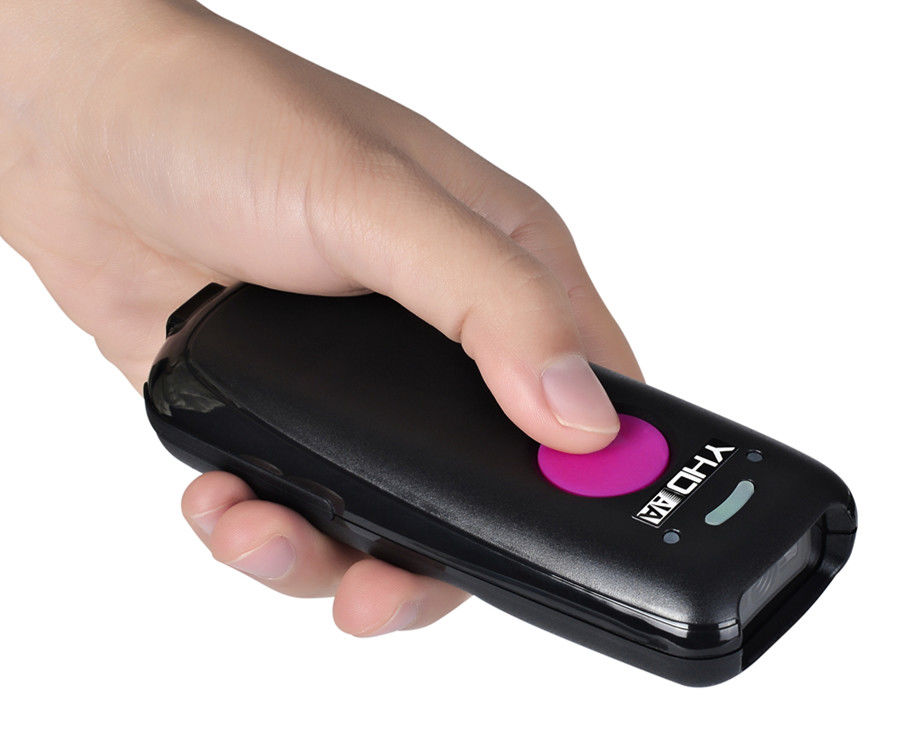

1D 2D Mini Barcode Scanner Portable Bluetooth Bar Code Reader YHD-3600DB

Mini Barcode Scanner 1D 2D Bluetooth Protable Scanners Bar Code Reader YHD-3600DB

Convenient to switch between 2.4G wireless & Bluetooth & USB wired three types of connection mode. YHD-3600DB Scanner delivers up to 100m transmission distance in barrier free under the 2.4G wireless mode, up to 10m transmission distance barrier free under the Bluetooth mode.

Features

● Mini size, light and portable.

● Plug & Play, Drive free.

● Support multi keyboard language.

● Support Bluetooth-HID/SPP/BLE and can be switched

● Support Bluetooth/2.4G/Wired and can be switched.

● 16M internal storage can store around 100,000 barcode under storage mode.

● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.

● Supermarket, Retail, Warehouse,Logistic,Library, Tobacco, Medical etc.

● Can be customized according to customer demand.

Technical parameters

Working current : 3.5 V ± 10%x100mA

Light source : 617LED

Sensor : 640*480 CMOS lumination : 6500K LEDs

CPU : ARM 32-bit Cortex

Decoding speed : 500/sec

Depth of Filed : 30-600mm

Indication : Buzzer & LED

Decoding accuracy : ≥4mil

Trigger Mode : Button,Continuous,Auto-Induction

Printing Contract : ≥25%

Scanning angle : Angle of rotation±360°,inclination± 65°,declination ± 60°

Anti-interference : 0-100000Lux Max

Decode Capability :

1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,

Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5(IATA),

Coda bar(NW-7),MSI Plessey,ISBM,ISSN,China post etc.

2D : QR Code, Data Matrix, PDF417, Aztec code, Maxicode,etc.

Button life : 10000,000 times

LED life : 100000 hours

Drop test : 1.8m

Relative humidity : 5%-95%

Working temperature : -20℃ to 50℃ Charging power : 5V-400mA

Transmission mode : Bluetooth / 2.4G Wireless / USB Wired

Transmission distance : 10m /100m / 1.5m

Battery : 3.7V-1200mAh

Working mode : Instant upload mode,Storage mode,Not lost mode

Storage : 16MB≈100,0000 barcodes

Working time : Full load≈15hours,Normal use ≈3 to 8days

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanner *1, Charging Cable *1, Receiver*1, Manual *1 ,Sling* 1, Box* 1

Single Package Size: 160*100*35mm

Single Gross Weight: 0.15kg

50pcs/CTN Carton Size: 530*195*340mm

50pcs/CTN Carton G.W.:9.2Kg, N.W:7.2Kg
