110mm Thermal Printer
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-9260 |

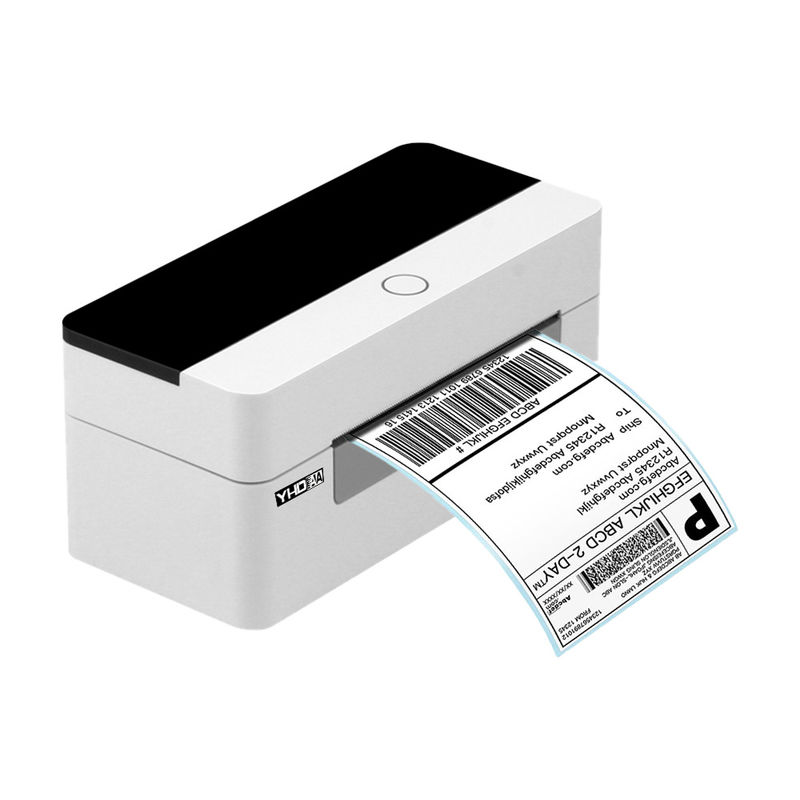

4 inch Desktop Barcode Thermal Label printer for Shipping Labels Direct Thermal 4x6 printer YHD-9260
label printer with 160m/s high speed , low noise and clear printing.this shipping label printer can print about 80 sheets 4" x 6" labels per minute, working continuously for more than 12 hours a day.
Features
● No ink or toner or ribbon neede
● Work with All Thermal Fan-fold Label & Roll Label
● Shipping label printer supports USB/ USB+Bluetooth (LAN/Wifi Optional).
● 8MB flash memory, 8MB SDRAM, High quality print head, 203DPI resolution
● Suitable for thermal direct labels from 26-116mm, support continuous paper, label paper, folding paper, tag paper.
● Wide application: Major selling/shipping platforms including Amazon, eBay , Paypal, Shopify, Etsy , Poshmark, Shippo, Shipstation, UPS, DHL, Fedex, Supermarket, Retail store, Clothing store, Post package industry, Medical industry, Home, Office and more.
Technical parameters
Interfaces : USB / USB+Bluetooth (Wifi Can Be Customized)
Print Comand : TSPL / EPL / ZPL / DPL
Print Method : Direct Thermal
Pirnt Speed : 160 mm / s Max.
Resolution : 203dpi
Processor : 32-bit CPU
Memory : 8Mb Flash Memory / 8MB SDRAM
Sensors : •Gap sensor •Cover opening sensor •Black mark sensor •Paper exit sensor
Internal fonts : 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software
1D barcode Code : 39, Code 93, Code 128UCC, Code 128 ,subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST
2D barcode : PDF-417, Maxicode, DataMatrix, QR code
Paper Length : 10-1778mm
Input : AC 100-240V, 50-60Hz
Output : DC 24V, 2.5A
Print Reliability : 100 Km
Operation : 5 ~ 40°C(41~104°F), Humidity: 25 ~ 85% non-condensing
Storage environment : -40 ~ 60°C(-40~140°F), Humidity:10 ~ 90% non-condensing
Warranty : 12 months at least
Packaging Details
Standard List: Printer*1,USB Cable *1,Adapter *1,User Manual *1, Power Cable*1,CD driver*1,Box *1
Single Package Size: 19.5*16.5*11cm
Single Gross Weight: 1.35KG
12pcs/CTN Size:61*35*24cm G.W.:16KG
