1D Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,SGS |
| Model Number | YHD-8200L+ |

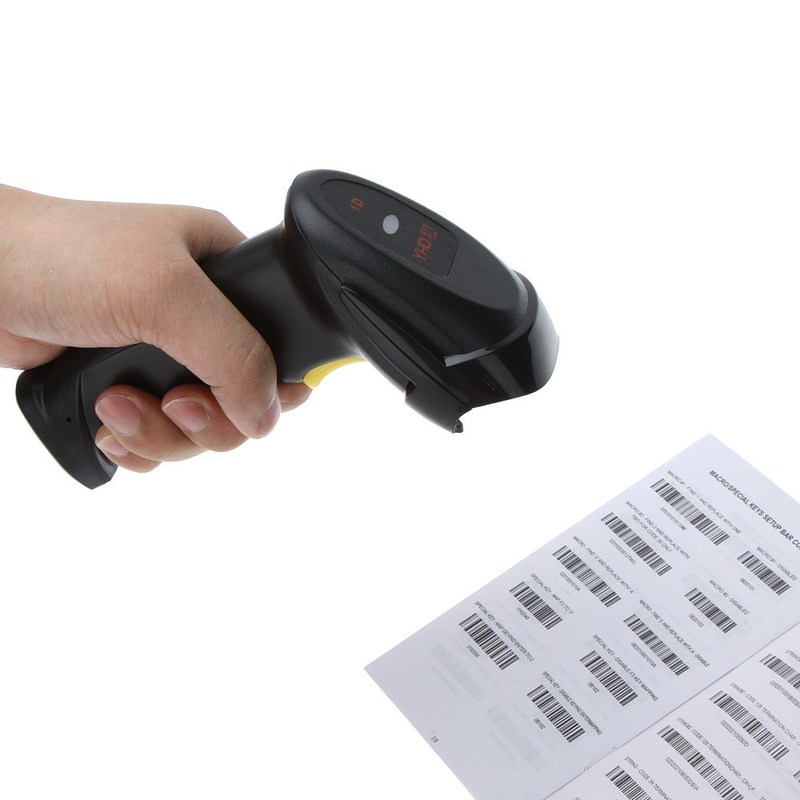

Laser Barcode Scanner with Adjustable Stand,Portable USB RS232 Handheld Wired Bar code Reader
YHD-8200L+ barcode scanner , Plug and Play No driver- simple installation with any USB port; ergonomic design with high quality ABS plastic; New 32 bit digit laser decoding technolgy with faster scanning speed, give you a much better user experience,Compatible with Windows, Mac, and Linux; works with Quickbook, Word, Excel, Novell, and all common software.
Features
● Factory direct sale, cheap price and stable scanning.
● Supporting the RS232,PS2 and USB interface.
● Support multiple languages; Error rate less 1/5 million.
● Comfortable button, service life of button up to 5million times.
● Made of durable ABS material, wear resistant and drop-proof.
● Fast and accurate in reading 1D codes.easily reads all 1D barcodes including those with unintended abrasions or surface stains.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
Light source : 650nm (visible laser)
Scan model : single line Bi-directional
Scan speed : 300 scans/sec
Resolution : 4mil
Width of scan : 5-30cm
Depth of scan : 2-50cm
Scan angles : Roll30°,Pitch75°,Yaw65°
Interface : RS232,USB,PS2
Print contrast : 30% minimum
Bit error rate : 1/5 million
Prompt : Buzzer, Indicator light
Scan model : Handheld / Continuous scanning
Weight : 0.25kg
Material : ABS+PC
Cable standard Straight:1.8m
Power supply : DC 5V±5%
Current Working : 50mA Standby: 30mA
Laser security : Accord with national level1 laser security standards
ESD protection : 15KV air discharge
Anti-knock : 1.5m free fall on concrete surface
Certificate: CE,FCC,RoHS ,IP54,SGS
Packaging Details
Standard List: Scanner*1, USB Cable *1, Manual *1, Box *1.
Single Package Size: 167*80*100mm
Single Gross Weight: 0.25kg
