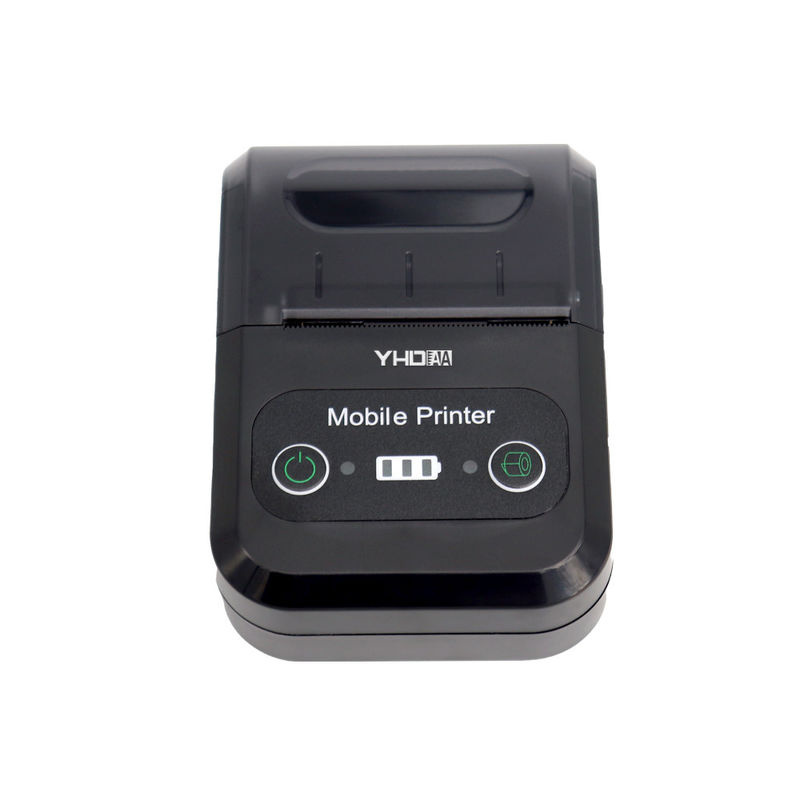

Mini 58mm Thermal Printer Lightweight Portable Thermal Receipt Printer
  • Mini 58mm Thermal Printer Lightweight Portable Thermal Receipt Printer
  • Mini 58mm Thermal Printer Lightweight Portable Thermal Receipt Printer
  • Mini 58mm Thermal Printer Lightweight Portable Thermal Receipt Printer
  • Mini 58mm Thermal Printer Lightweight Portable Thermal Receipt Printer
  • Mini 58mm Thermal Printer Lightweight Portable Thermal Receipt Printer
  • Mini 58mm Thermal Printer Lightweight Portable Thermal Receipt Printer

Mini 58mm Thermal Printer Lightweight Portable Thermal Receipt Printer

Brand Name YHDAA
Certification CE,FCC,ROHS,IP54,FDA,SGS
Model Number YHD-5803
Product Details
Type:
58mm Thermal Receipt Printer
Dot Pitch:
8dots/mm 384 Dots/line
Characters/line:
ANK:48, 42, 32 GBK:24, 16
Optional Accessories:
Serial Interface Cable/CD/Car Charger
Paper Feeding:
Easy Paper Loading
Reliability Print:
50km
High Light:

Portable 58mm Thermal Printer

,

Lightweight 58mm Thermal Printer

,

58mm Portable Thermal Receipt Printer

Payment & Shipping Terms
Packaging Details
YHD-5803(2 inch) Bluetooth Thermal Receipt Printer Standard List : Printer*1, USB Cable *1, Adapter *1, Manual *1, Test paper*1, Box *1
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

58mm Mini Portable Thermal Receipt Printer With Large Capacity Power Battery for Outdoor Use Easy take

Built-in rechargeable 2600mAh lithium-ion battery, standby time can reach 5 - 6 days, auto sleep, auto awake, save electricity. Mobile printers for android commands: ESC / POS / STAR compatible command set,Resolution: 8 dots / mm ( 203DPI ).Paper dimensions: 57.8 + / - 0.5mm x diameter 40.0mm. Bluetooth Receipt Printer doesn't need ink, toner, or cartridges. Also, the mini printer is easy to carry, along with a free belt to hang on the waist. It's suitable for indoors or outdoors, variety of occasions, such as restaurants, retail, pizza shop, bakery, cafe shop.



Features

● Small size and lightweight, easy to carry.

 Fine print head for clear effect and high speed.

Can print 1D barcode, 2D barcode, picture, and text.

Small and portable, you can carry around and print receipts anywhere&anytime.

Built-in 2600mAh rechargeable lithium-ion battery, can work continuously up to 8 hours.

Support USB fast charging and realize printing while charging, which can greatly provide printing efficiency.

With BT function, supports Android, IOS and Windows, convenient for you to print data from your device wirelessly.



Technical parameters

Printing method : Line thermal printer

Printing speed : 90mm/s

Dot pitch : 8dots/mm, 384 dots/line

Printing width : 48mm

Paper width : 57.5±0.5mm

Paper roll outer diameter : 40mm (Max.)

Paper roll inner diameter : 13mm(Min.)

Paper thickness : 60-80um

Overall dimension(WxDxH) : 119.3x81.5x47m

Weight ( g) : 199(non- including the paper roll)

Printing characters : ANK: 8x16,9X17, 9x24,12x24 GBK:24x24

Characters/line : ANK:48, 42, 32 GBK:24, 16

Reliability Print : 50km

Barcode type : 1D: UPC-A,UPC-E,EAN-13,EAN-8,CODE39,CODE93,CODE128,CODEBAR,ITF25

2D: QR CODE, PDF417

interface : USB+Bluetooth, bluetooth support: Android+IOS

Power : 2600mAh 7.4V rechargeable Lithium battery

Recharge adapter : Stand by recharging / AC adapter

Black mark test : Supported

Paper cut : By hands

commands : ESC/POS compatible with order sets

operate setting : Temperature -10°C~50°C ; Humidity 20%~85%

Recharge Setting : Temperature 5°C~40°C; Humidity 20%~85%

Standard accessories : Li-ion battery, AC adapter, USB interface cable, Long-term preservable paper, user manual

Optional accessories : Serial interface cable/CD/Car charger




Packaging Details

Standard List: Printer*1, USB Cable *1, Adapter *1, Manual *1, Test paper*1, Box *1.

Single Package Size: 154*106*66mm

Single Gross Weight: 0.36KG

20pcs/CTN Carton Size:33.5*32.5*22.5cm Carton G.W.:8.15KG
