| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5800D |

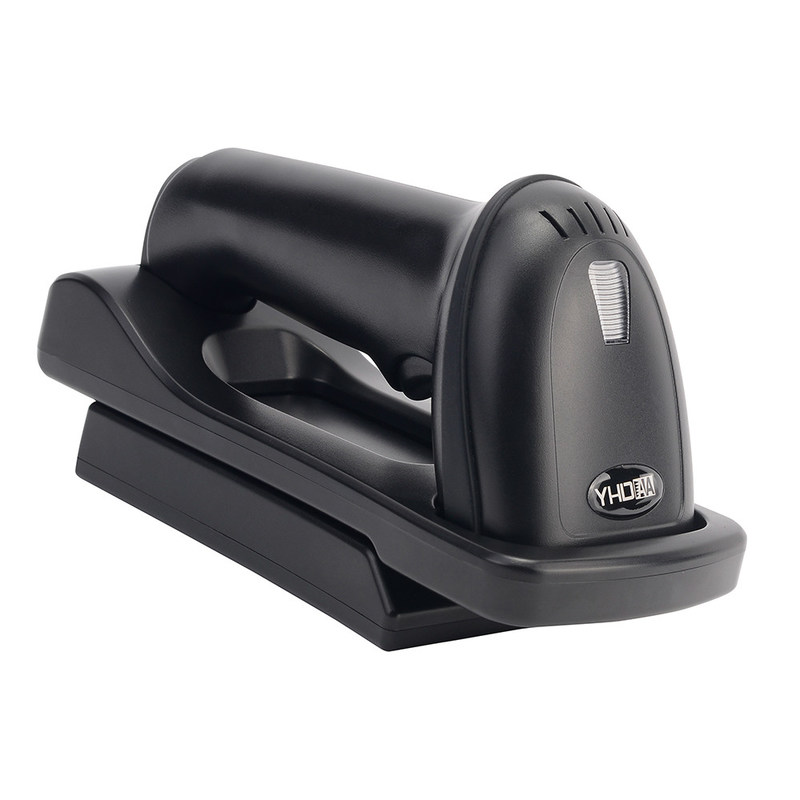

Barcode Reader 2D Scanners OEM ODM Bar Code Scanner 500times/Second YHD-5800D
YHD-5800D reserved hole at the bottom of stand, used in the warehouse without desktop. Barcode Scanner stand could adjust different angles while charging cradle can be used as USB receiver. The folding stand is more simple and convenient to install and disassemble than normal barcode scanner stand.
Features
● Color:Yellow/ Black/ Green/Blue Optional.
● Factory direct sale,cheap price.
● Plug and play, work with all POS system.
● Support more 16 kinds keyboard languages, can be used in many countries.
● Supports Handheld/Continuous/Auto-Induction,3modes for option.
● Comes with adjustable scanner stand and Adjust the angle and height according to the need.
Support commercial barcode,pharmacy barcode,logistical barcode,post barcode ,folding barcode,small barcode,barcode covered by film and unclearly printed barcode.ect.
● Application fields:Supermarket,Retail,Warehouse,Logistic,Library,Medical etc.
Technical parameters
CPU:ARM 32-bit Cortex
Sensor : CMOS 640*480
Resolution : 4mil
Light aimer : 624nm LED
Printing Contract :≥25%
Material : ABS+PC
Indication : Buzzer & LED
Drop test : 2m
250Lux Dept of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm
Decode Capability:
1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode : Handheld,Continuous, Auto-Induction
Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°
Temperature : -20℃-50℃(Working) -40℃-70℃(Storage)
Interface : TTL,RS232,KBW,USB
Operating Humidity : 5 - 95% (non-condensing)
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.4kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:14Kg, N.W:12Kg
