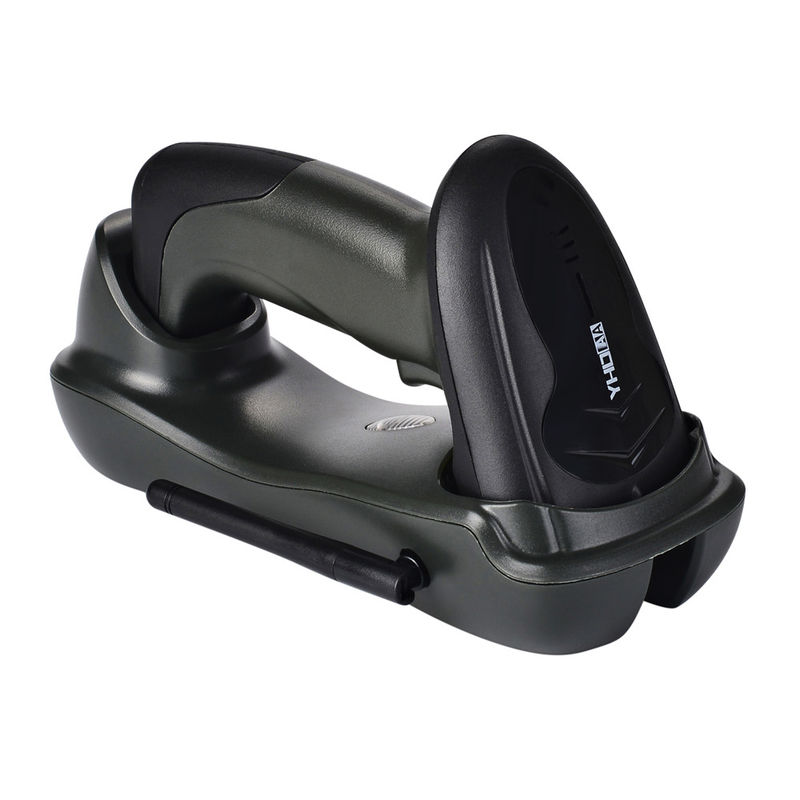

Wireless 2D Barcode Scanner 433MHZ QR Code Reader Machine For Warehouse

Wireless Barcode Scanner QR Code Reader 433MHZ With Base Warehouse Use YHD-5300DM

Three upload mode:Instant upload mode / storage mode/Non-Losing mode.In storage mode,the scanner will automatically store the data in it’s own memory when the data can not upload to the computer (when the transfer distance is too far or there are other signal interruption). It guarantee the data will not be lose.Internal storage supports up to 10,000 barcodes in offline storage mode.You could upload the data to computer when you need it.

Features

● High decoding ability and high performance

● Large capacity battery,2600MAH Li-ion battery.

● Super memory function, can store up to 300,000 barcodes.

● Super paring function, support one to one, one to many, many to one.

● Supports 1D/2D bar-codes on paper/screen.

● Base function as receiver and charger,free of charging trouble.

● Super transmission distance, 500m effective open distance(50-200m indoor distance).

● The head of the scanner, the handle and the base are protected by rubber, Antiknock, full quakeproof design, withstand 3m drops.

● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

● Can be customized according to customer demand.

Technical parameters

Transmission mode : 433M wireless

Storage:300,000 barcodes

Distance : 500m

CPU : ARM 32-bit Cortex

Sensor : 640*480 CMOS

Interface : USB

Resolution : 4mil

Light aimer : 617nm LED

Battery : 3.7V-2600mAh

Indication : Buzzer & LED

Decoding speed : 500scans/sec

Illumination : 6500K LEDs

Button life : 8000,000 times

Hull material: ABS+Rubber

250Lux Depth of Field : 13mil-EAN13 60-290mm,4mil-code39 30-150mm,15mil-QR 20-300mm,15mil-PDF417 40-300mm

Decode Capability :

1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,

Coda bar,MSI Plessey,RSS,etc.

2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.

Trigger Mode : Handheld,Continuous,Auto-Induction

Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°

Temperature storage : -40°C ~ 60°C Temperature working: -20℃ to 60℃

Working time : 3 to 10 days Relative Humidity: 0 ~ 95%

Anti inference : 0-100000Lux Max

Printing Contract : ≥25%

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Drop test : 3m

Packaging Details

Standard List: Scanner *1, Charging Cable *1, Charging Base *1, Manual *1, Box *1.

Single Package Size: 200*85*145mm

Single Gross Weight: 0.50kg

30pcs/CTN Carton Size: 425*415*445mm

30pcs/CTN Carton G.W.:16Kg N.W.:14Kg

​​
