Bluetooth Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5800DB |

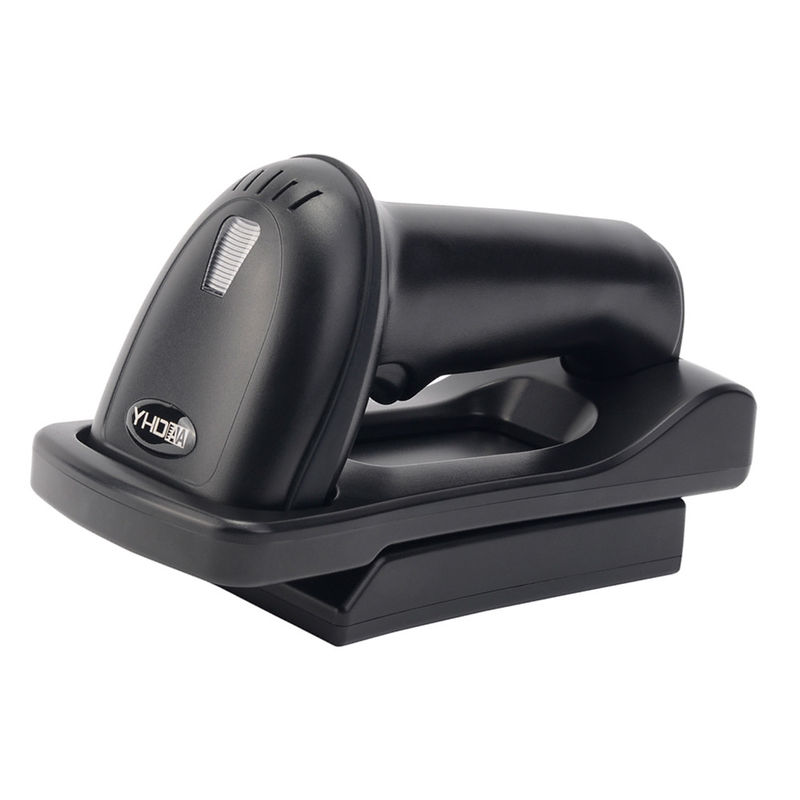

Handheld 2D Bluetooth Barcode Scanner QR Bar code Reader With Base 500times/second YHD-5800DB
YHD-5800DB has fast Scanning Ability, 500 scans per second, Improved scanning of curved, wide, poorly printed and damaged barcodes, High speed, omnidirectional reading of 1D, 2D, Postal bar codes and reverse printed bar code on paper or screen, support full 2D barcodes like PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin
Features
● Handheld 2D Bluetooth Barcode Scanner QR Bar code Reader With Base 500times/second YHD-5800DB
● Color:Yellow/ Black/ Green/Blue Optional.
● HID/SPP Mode and can switch.
● Supports Bluetooth/2.4G wireless,2modes for option.
● Supports Handheld/Continuous/Auto-Induction,3modes for option.
● Support over sixteen different countries' keyboard layout.
● Excellent decoding ability, high speed and low error rate.
● Built-in 2600mAh battery, super-long standby time.
● Comes with adjustable scanner stand, Base supports data transmission and battery charging.
● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
● It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile phone and computer screen, and it also can read 2D barcodes.
● Can be customized according to customer demand.
Technical parameters
Transmission mode : Bluetooth/2.4G Storage:100,000 barcodes
Distance : 50m/100m Sensor : 640*480 CMOS
CPU : ARM 32-bit Cortex Battery : 3.7V-2600mAh
Indication : Buzzer & LED
Light aimer : 617nm LED
Resolution : 4mil
Anti-inference : 0-100000Lux Max
Decoding speed : 500scans/sec
Illumination : 6500K LEDs
Printing Contract : ≥25%
Interface : USB,USB-COM
Button life : 8000,000 times Material : ABS+PC
Trigger Mode : Handheld,Continuous,Auto-Induction
Depth Of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm
Decode Capability:
1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,
Coda bar,MSI Plessey,RSS,etc.
2D: QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Drop test : 2m
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.5kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:16Kg, N.W:14Kg
