Bluetooth Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5800LB |

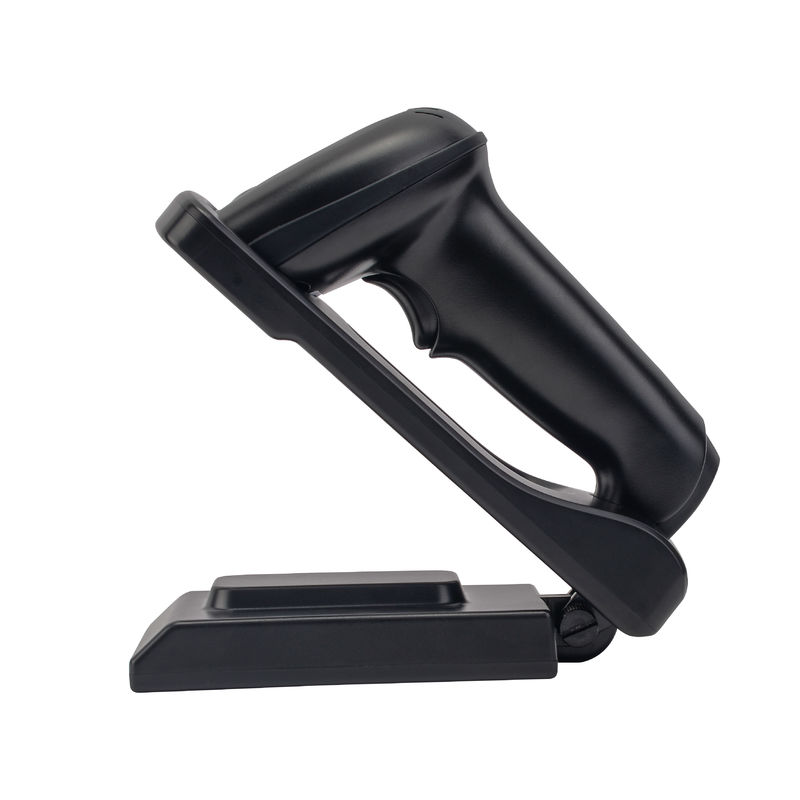

YHD-5808LB 1D Code Barcode Scanner Wireless,3 in 1 Compatible with Bluetooth & 2.4GHz Wireless & Wired Connection
YHD-5800LB has strong compatibility,support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
Features
● Color:Yellow/ Black/ Green/Blue Optional.
● Support SPP and HID mode.
● Base supports data transmission and battery charging.
● Service life of button reaches up to 8 million times.
● Support over sixteen different countries' keyboard layout.
● Built-in 2600mAh battery, super-long standby time.
● Support to put prefix or suffix before or after scanned data,turn on/ off buzzer, identity barcode type, add keyboard keys (TAB, CR&LF, etc.)
● Can be customized according to customer demand.
Technical parameters
Transmission mode : Bluetooth/2.4G
Scanning type : bi-directional
Distance : 50m/100m
CPU : ARM 32-bit Cortex
Storage : 100,000 barcodes
Battery : 3.7V-2600mAh
Trigger Mode : Button,Continuous
Light source:650nm LD
Printing Contract : ≥25%
Indication:Buzzer & LED
Resolution : 3.3mil
Bit error rate :1/20million
Button life : 8000,000 times
laser life:12000 hours
Depth Of Field : 3.3mil 2mm-100mm,10mil 2mm-350mm,15.6mil 5mm-600mm,35mil 10mm-1000mm
Scanning angle:rotor angel±30°,inclination± 45°,declination ± 60°
Anti inference : industrial lighting or sun will not make any difference
Working current : 3.3Vx40mA Standby current : 18uA-5mA
Working time : 3 to 10 days
Charging power : 5V-400mA
Certificate : CE,FCC,RoHS,IP54,FDA,SGS
Drop test : 2.0m
Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.5kg
