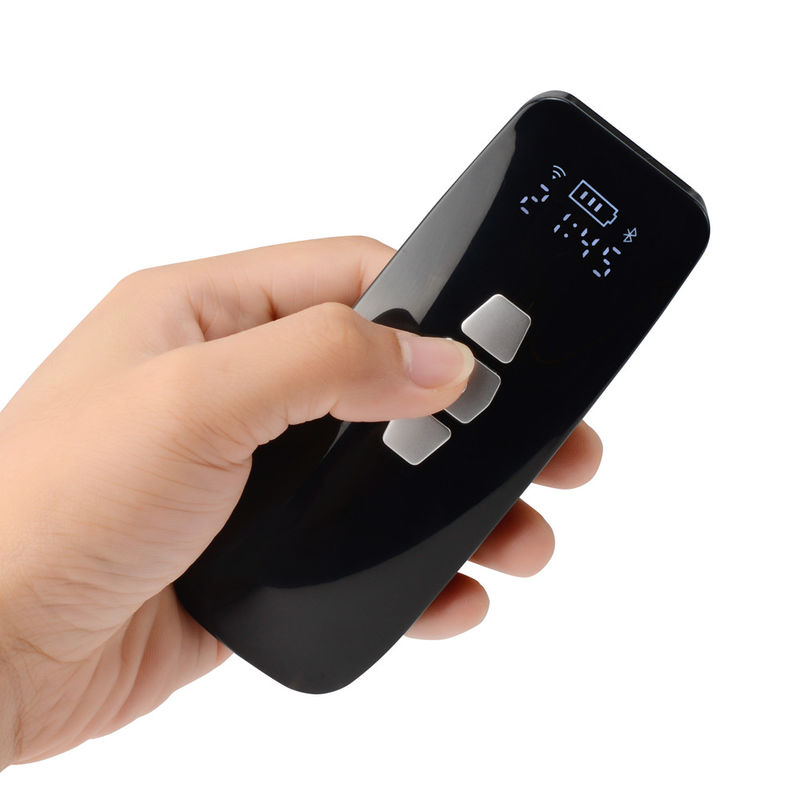

Wireless Mini Barcode Scanner Lightweight Handheld Barcode Reader With Display

Mini Bluetooth Barcode Scanner With Display Screen Qr Reader Scanners YHD-3200DB

YHD-3200DB With LED screen showing real time and power level,also easy checking of the scanner's connection mode. Function buttons support quick switching connections, as well as instant upload mode & storage mode.

Features

● YHD-3200DB Mini size, light and portable.

● 50m viewing distance wireless transmission.

● Support HID/SPP/BLE mode and can switch.

● Supports instant upload mode and storage mode.

● Excellent decoding ability, fast to scan 1D and 2D barcodes on paper/screen.

● Can store 100,000 barcode in offline storage mode, very convenient to use.

● Built-in 1500mAh Battery, it can support 18 hours Continuous scanning and 2 months standby after 4hours full charge.

● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.

● Can be customized according to customer demand.

Technical parameters

Working current : 3.5 V ± 10%x100mA

Light source : 617LED

Sensor : 640*480 CMOS lumination : 6500K LEDs

CPU : ARM 32-bit Cortex

Decoding speed : 500/sec

Depth of Filed : 30-600mm

Indication : Buzzer & LED

Decoding accuracy : ≥4mil

Trigger Mode : Button,Continuous,Auto-Induction

Printing Contract : ≥25%

Scanning angle : Angle of rotation±360°,inclination± 65°,declination ± 60°

Anti-interference : 0-100000Lux Max

Decode Capability:

1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,

Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5(IATA),

Coda bar(NW-7),MSI Plessey,ISBM,ISSN,China post etc.

2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.

Button life : 8000,000 times

LED life : 100000 hours

Drop test : 2m

Transmission : Bluetooth & 2.4G &USB-Wire

Working temperature : -20℃ to 50℃

Relative humidity : 5%-95%

Wireless type:Bluetooth/2.4G Wireless

Transmission distance:50m/100m

Battery : 3.7V-1500mAh

Charging power : 5V-400mA

Working mode : Instant upload mode,Storage mode,Not lost mode

Storage : 16M=100000 barcodes

Working time : Full load≈18hours,Normal use ≈3 to 10days

Packaging Details

Standard List: Scanner *1, Charging Cable *1, Receiver*1, Manual *1 ,Sling* 1, Box* 1

Single Package Size: 160*100*35mm

Single Gross Weight: 0.16kg

50pcs/CTN Carton Size: 530*195*340mm

50pcs/CTN Carton G.W.:9.5Kg, N.W:7.5Kg
