1D Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5800L |

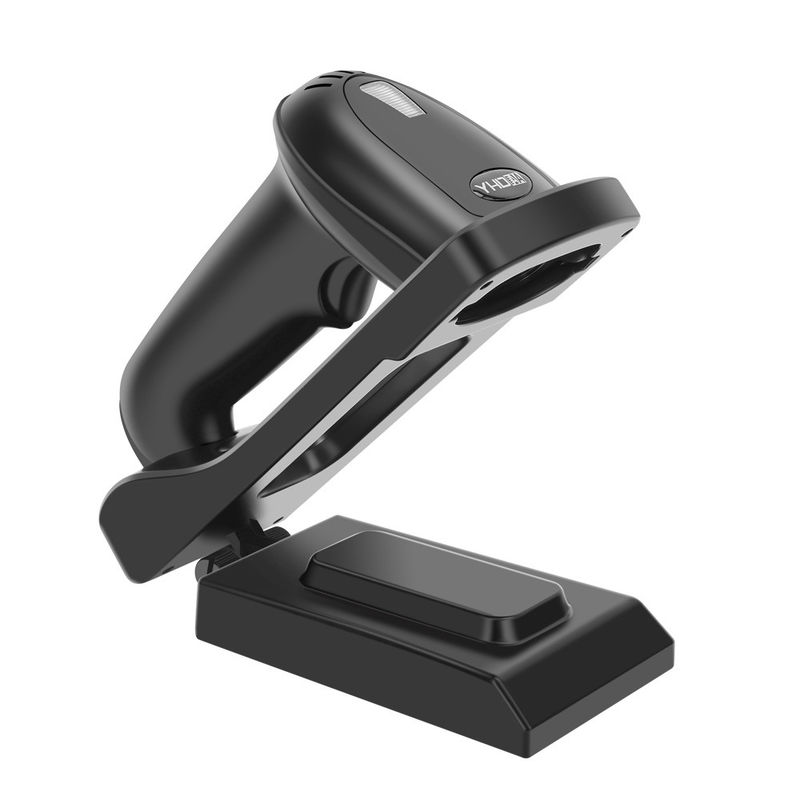

1D Laser Wired Barcode Scanner Excellent Decode Capacity Scanners with Base YHD-5800L
Easy and quick installation,Plug and play directly, No driver. the usb cable into your computer, laptop, tablet , POS and start scanning. No need to learn, get started quickly. Interfaces: USB , RS-232 Port. Compatible with Windows, Mac, and Linux; works with Word, Excel, Novell, and all common software
Features
● 300scans/sec decoding speed, 3.3mil resolution.
● Support the multinational language keyboard.
● 32-bit high-speed processor, with powerful decode capacity.
● Up to 12,000 hours laser Life , French press key with life of 8 million pressing times .
● Manual trigger/Continuous scan(for choice),very comfortable operating.
● Ergonomic design offer comfortable operation and enhance the working efficiency.
● Comes with adjustable scanner stand and Adjust the angle and height according to the need.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical e
● Can be customized according to customer demand.
Technical parameters
Electrical parameter : 5/3.3 V ± 10%x100mA (idle:10mA)
Scanning type : bi-directional
CPU : ARM 32-bit Cortex
Light source : 650 nm visual laser diode
Trigger Mode : Handheld,Continuous
Indication : Buzzer & LED
Printing Contract : >25%
Resolution : 3.3mil
Decoding speed : 300scans/sec,Bit error rate 1/5millon,1/20million,Scanning width 30cm
Depth of Field : 3.3mil 2mm-100mm,10mil 2mm-350mm,15.6mil 5mm-600mm,35mil 10mm-1000mm
Scanning angle : rotor angel±30°,inclination± 45°,declination ± 60°
Anti inference : industrial lighting or sun will not make any difference
Decoding Capability : UPC/EAN,with complementary UPC/EAN Code128,Code39,Code 39Full,ASCII,Coda bar,industrial/Interleaved2 of 5,
Code93,MSI,Code11, ISBN,ISSN,China post,etc
Button life : 8000,000 times ; laser life:12000 hours
Drop test : 2.0m fall to concrete
Interface : TTL,RS232,KBW,USB
Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.4kg
