QR Code Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5800D |

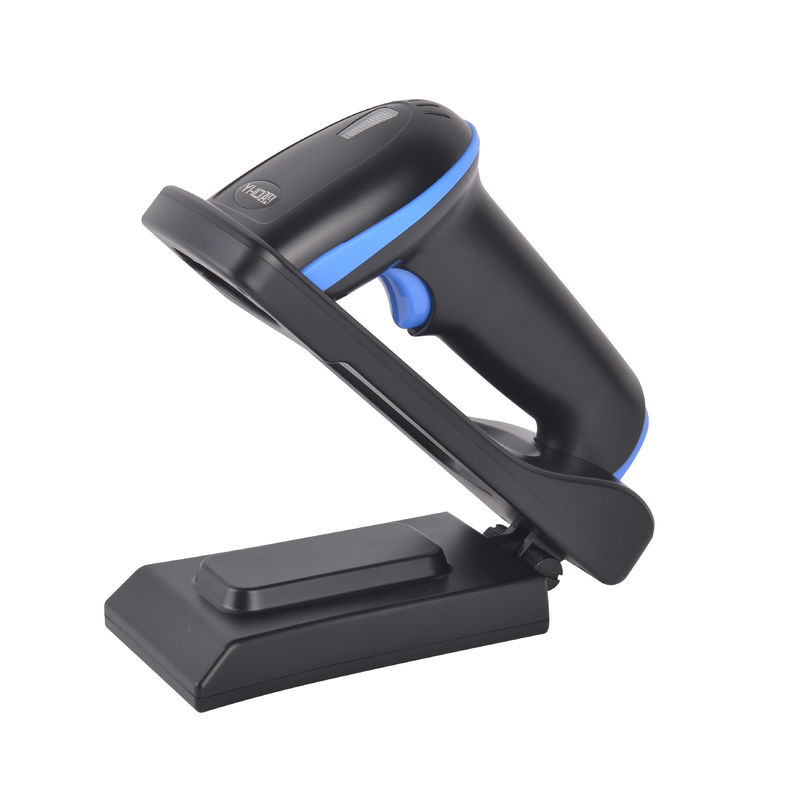

2D Handheld Qr Code Reader Scanners Wired Barcode Scanner With Base YHD-5800D
1D 2D QR Bar Code Symbologies】1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Coda bar, MSI Plessey, RSS, etc. 2D: QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc. *Note 24-7 Pre-sale and After-sales Service: If you experience a problem with Tera scanner, please contact the
Features
● Factory direct sale, cheap price.
● Plug and play, work with all POS system.
● Strong decoding ability, can scan 1D/2D barcodes on paper, screen.
● Support more 16 kinds keyboard languages, can be used in many countries.
● Comes with adjustable scanner stand and Adjust the angle and height according to the need.
● Support commercial barcode ,pharmacy barcode ,logistical barcode ,post barcode ,folding barcode ,small barcode ,barcode covered by film and unclearly printed barcode.ect.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
CPU : ARM 32-bit Cortex
Sensor : CMOS 640*480
Resolution : 4mil
Light aimer : 624nm LED
Printing Contract : ≥25%
Material : ABS+PC
Indication : Buzzer & LED
Drop test : 2m
Decoding speed : 500scans/sec
Anti inference : 0-100000Lux Max
Button life : 8000,000 times
Voltage : 5V DC
250Lux Depth of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm
Trigger Mode : Handheld,Continuous, Auto-Induction
Interface : TTL,RS232,KBW,USB
Operating Humidity : 5 - 95% (non-condensing)
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.4kg
