QR Code Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5800D |

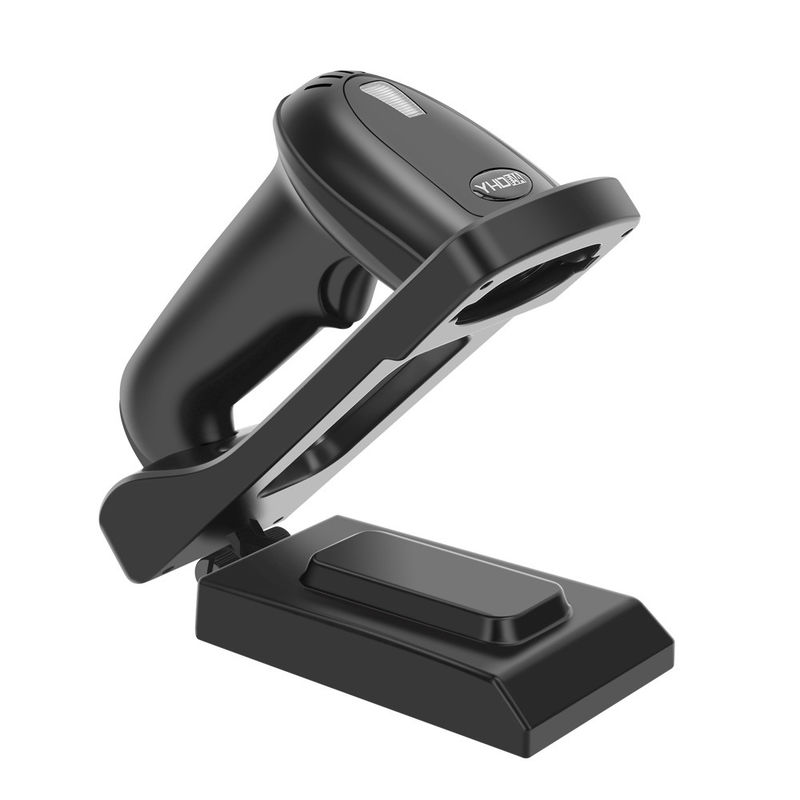

Barcode Scanner 2D YHD-5800D Supports Read 1D, 2D, QR, Data Matrix, PDF417 Code
YHD-5800D with Strong decoding ability, can scan 1D/2D barcodes on paper, screen, Plug and play, work with all POS system.
Features
● Color:Yellow/ Black/ Green/Blue Optional.
● Factory direct sale,cheap price.
● Comes with adjustable scanner stand and Adjust the angle and height according to the need.
● Support more 16 kinds keyboard languages, can be used in many countries.
Support commercial barcode,pharmacy barcode,logistical barcode,post barcode ,folding barcode,small barcode,barcode covered by film and unclearly printed barcode.ect.
● Application fields:Supermarket,Retail,Warehouse,Logistic,Library,Medical etc.
Technical parameters
CPU:ARM 32-bit Cortex
Sensor : CMOS 640*480
Resolution : 4mil
Light aimer : 624nm LED
Printing Contract :≥25%
Material : ABS+PC
Indication : Buzzer & LED
Drop test : 2m
Decoding speed : 500scans/sec
Anti inference:0-100000Lux Max
Button life : 8000,000 times
Voltage:5V DC
250Lux Dept of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm
Decode Capability:
1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode : Handheld,Continuous, Auto-Induction
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.4kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:14Kg, N.W:12Kg
