1D Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5700L+ |

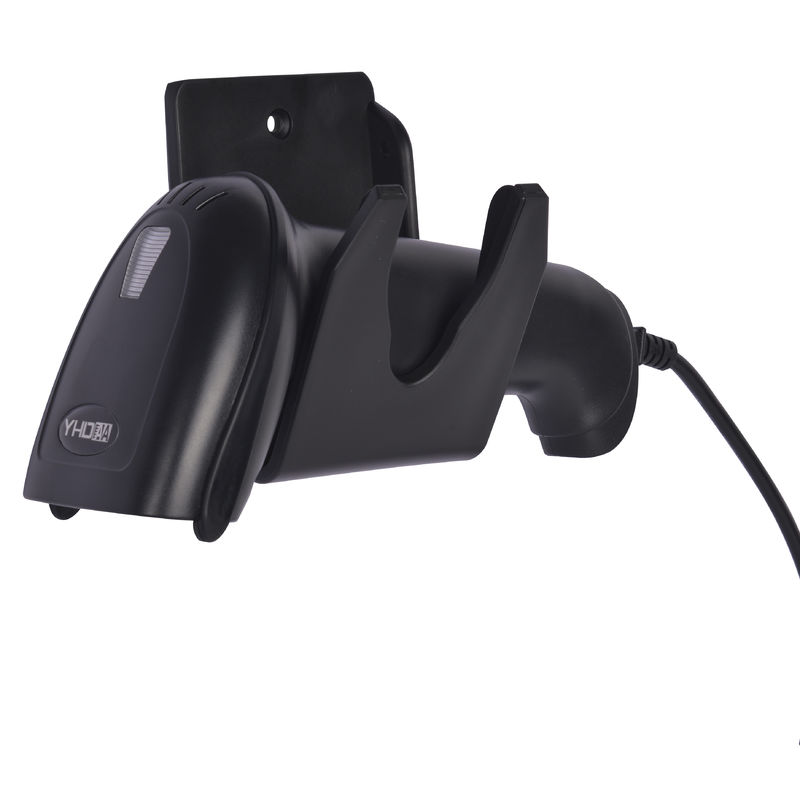

1D Wired Handheld Barcode Reader Laser Bar Code Scanner USB RS232 TTL YHD-5700L+
YHD-5700L+ 1D Barcode Scanner with Stand, Plug and play directly, No driver.the handheld inventory scanner can easily decode most of 1D 2D QR barcodes on labels, paper ,Even damaged, blurring, incomplete, fuzzy and reflective barcodes can be decoded easily. 1D like: UPC/EAN, Code39, Interleaved 2 of 5, Code93, Code 128, Codabar etc.
Features
● 300scans/sec decoding speed, 3.3mil resolution.
● Support the multinational language keyboard.
● Support multi-interface: RS232/USB/KB/TTL.
● 32-bit high-speed processor, with powerful decode capacity.
● Up to 12,000 hours laser Life , French press key with life of 8 million pressing times .
● Manual trigger/Continuous scan(for choice),very comfortable operating.
● Ergonomic design offer comfortable operation and enhance the working efficiency.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical e
Technical parameters
Electrical parameter : 5/3.3 V ± 10%x100mA (idle:10mA)
Scanning type : bi-directional
CPU : ARM 32-bit Cortex
Light source : 650 nm visual laser diode
Trigger Mode : Handheld,Auto-Continuous
Indication : Buzzer & LED
Printing Contract : >25%
Resolution : 3.3mil
Decoding speed : 300scans/sec
Bit error rate : 1/5millon,1/20million
Scanning width : 30cm
Depth of Field : 3.3mil 2mm-100mm,10mil 2mm-350mm,15.6mil 5mm-600mm,35mil 10mm-1000mm
Scanning angle rotor angel±30°,inclination± 45°,declination ± 60°
Anti inference industrial lighting or sun will not make any difference
Decoding Capability UPC/EAN,with complementary UPC/EAN Code128,Code39,Code 39Full,ASCII,Coda bar,industrial/Interleaved2 of 5,
Code93,MSI,Code11, ISBN,ISSN,China post,etc
Button life : 8000,000 times
laser life : 12000 hours
Interface : TTL,RS232,KBW,USB
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, USB Cable *1,Manual *1, Stand * 1, Box *1.
Single Package Size: 185*120*86mm
Single Gross Weight: 0.45kg
