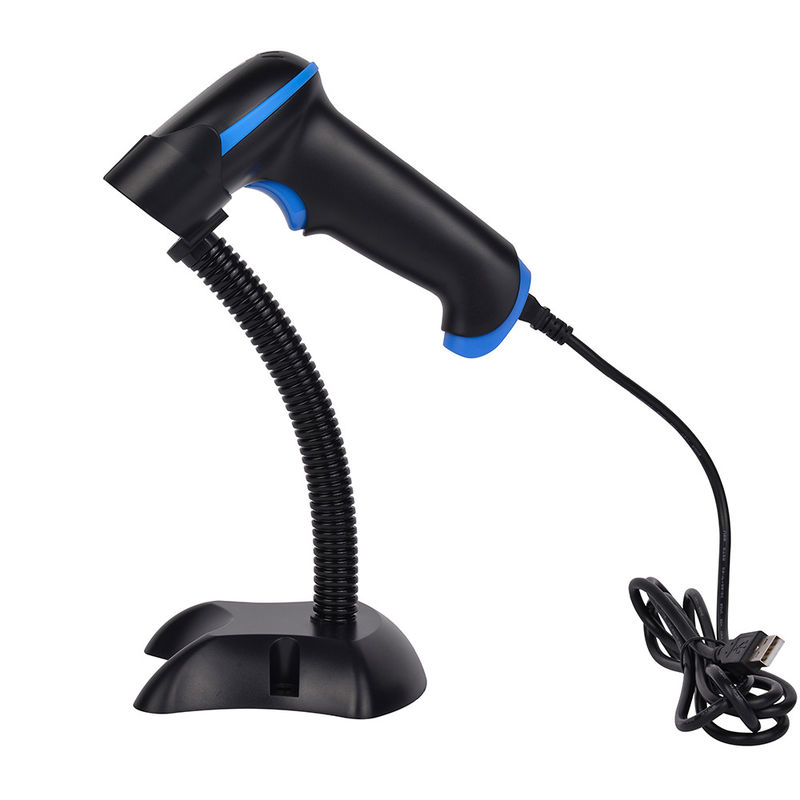

1D Wired Laser Barcode Reader Handheld Bar Code Scanner With Stand YHD-5700G
Features
● Plug and play directly, No driver.
● 300scans/sec decoding speed, 3.3mil resolution.
● Support the multinational language keyboard.
● Support multi-interface: RS232/USB/KB/TTL.
● 32-bit high-speed processor , with powerful decode capacity.
● Manual/ automatic / auto-sensing, three reading ways to select.
● Comes with adjustable scanner holder for convenient usage.
● Up to 12,000 hours laser Life , French press key with life of 8 million pressing times .
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
● Can be customized according to customer demand.
Technical parameters
Electrical parameter : 5/3.3 V ± 10%x100mA (idle:10mA)
Scanning type : bi-directional
CPU : ARM 32-bit Cortex
Light source : 650 nm visual laser diode
Trigger Mode : Handheld,Continuous,Auto-Induction
Indication : Buzzer & LED
Printing Contract : >25%
Resolution : 3.3mil
Decoding speed : 300scans/sec
Bit error rate : 1/5millon,1/20million
Scanning width : 30cm
Depth of Field : 3.3mil 2mm-100mm,10mil 2mm-350mm,15.6mil 5mm-600mm,35mil 10mm-1000mm
Scanning angle : rotor angel±30°,inclination± 45°,declination ± 60°
Anti inference : industrial lighting or sun will not make any difference
Decoding Capability : UPC/EAN,with complementary UPC/EAN Code128,Code39,Code 39Full,ASCII,Coda bar,industrial/Interleaved2 of 5,
Code93,MSI,Code11, ISBN,ISSN,China post,etc
Button life : 8000,000 times ; laser life:12000 hours
Drop test : 2.0m fall to concrete
Interface : TTL,RS232,KBW,USB
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, USB Cable *1,Manual *1, Stand * 1, Box *1.
Single Package Size: 185*120*86mm
Single Gross Weight: 0.45kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:14Kg, N.W:11Kg
