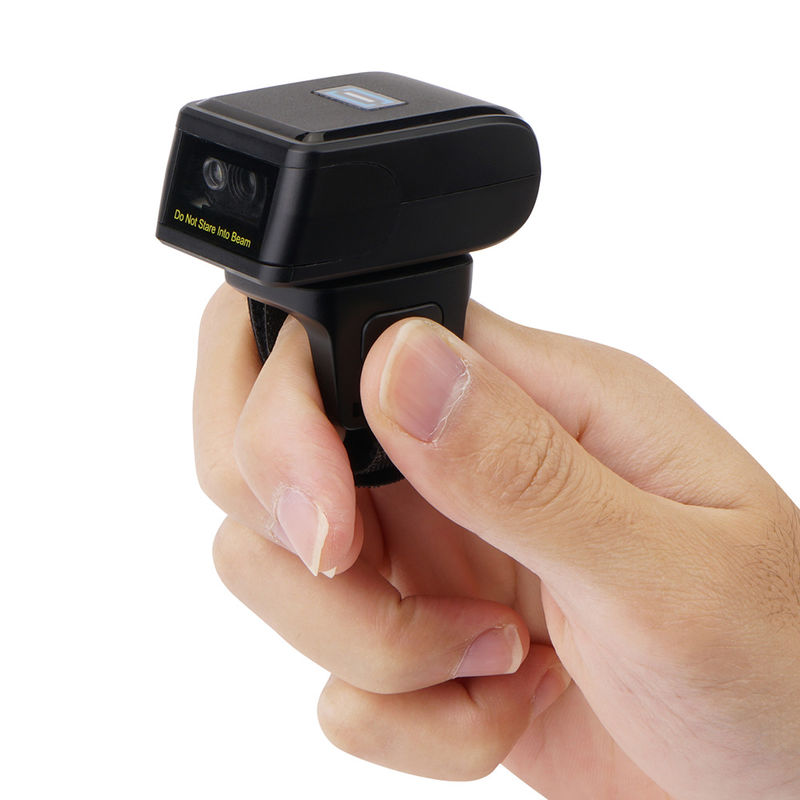

1D 2D Mini Ring Barcode Scanner QR Code Portable Wearable YHD-3300DB

1D 2D QR Code Portable Wearable Mini Finger Barcode Scanner YHD-3300DB

Features

● Mini size & Wearable & Portable.

● Support Bluetooth BLE,SPP, HID.

● Bluetooth/2.4G, 2modes for option.

● Long working time for single charging.

● Feedback by LED indicator and buzzer.

● Supports instant upload mode and storage mode.

● Excellent decoding ability, fast to scan 1D/2D barcodes on paper/screen.

● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.

● Three scanning modes: continuous mode, manual mode, auto close mode.

● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

● Can be customized according to customer demand.

Technical parameters

Sensor : 750*480 CMOS

Light source : 617LED

Decoding accuracy : 4mil

Indication : Buzzer, LED

Transmission mode : Bluetooth & 2.4G

Shell Material : ABS+TPR

Transmission distance : 50m/100m

Memory : 512K(5000-10000 barcodes)

Battery : 500mA Li-ion battery

Decoding speed : 500scans/second

Charging time : 2-3 hours

Working current : 240ma(max)

Bit error rate :1/5million

Working Voltage : (3.3V~4.2V)±5%

Standby time : >30 days

Relative Humidity : 5~ 95%

Decode Capability :1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5(IATA),Coda bar(NW-7),MSI Plessey,ISBM,ISSN,China post etc.

2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.

Depth of Filed : EAN13(13mul) 50mm -195mm,Code39(5mil) 50mm -105mm,FDF417(6.67mil) 35mm - 135mm,Data Matrix(10mil) 35mm - 140mm,QR Code(15mil) 30mm - 165mm

Size : 53mm*36mm*45mm

Weight : 0.038kg

Depth of field angle : 34° V x 46° H

Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°

Working time : Full load≈10hours,Normal use ≈3 to 5days

Temperature: Working : -10℃-60℃ Storage: -20℃-60℃

Support OS : Microsoft Windows iOS.XP/7.0/8.0/10,Android

Packaging Details

Standard List: Scanner *1, Charging Cable *1, USB Receiver *1, Manual *1, Box *1

Single Package Size: 135*107*55mm

Single Gross Weight: 0.12KG
