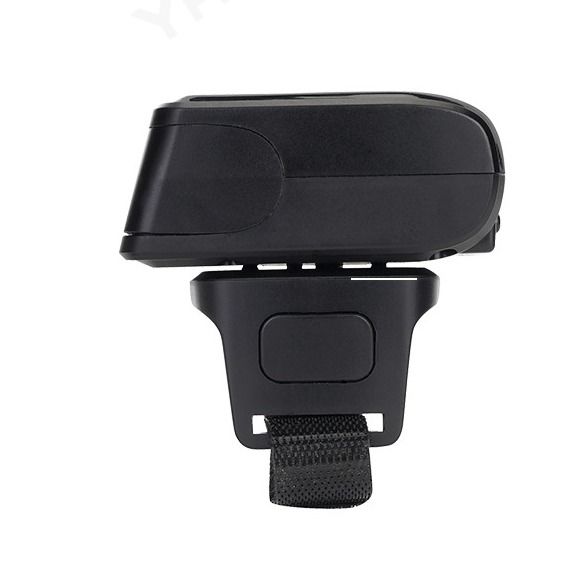

Ring Mini 2D Barcode Scanner Reader USB Wired 2.4G Wireless Bluetooth Wearable

2D Ring Barcode Scanner Bluetooth, USB Wired & 2.4G Wireless & Bluetooth Mini Wearable Bar code Scanner

YHD-3200DB Reduces interference and improves worker transaction time while reducing accidental drops, lowering the total cost of ownership.Small size with large storage, portable and endurable.

Standard range scanner that reads all common 1D codes up to 45” (1143mm) or image that reads both 1D to ensure maximum productivity Built Tough

Features

● Mini size & Wearable & Portable.Support Bluetooth BLE,SPP, HID.

● Bluetooth/2.4G, 2modes for option.

● Long working time for single charging.

● Feedback by LED indicator and buzzer.

● Supports instant upload mode and storage mode.

● Excellent decoding ability, fast to scan 1D/2D barcodes on paper/screen.

● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.

● Three scanning modes: continuous mode, manual mode, auto close mode.

● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

● Can be customized according to customer demand.

Technical parameters

Sensor : 750*480 CMOS

Light source : 617LED

Decoding accuracy : 4mil

Indication : Buzzer, LED

Transmission mode : Bluetooth & 2.4G

Shell Material : ABS+TPR

Transmission distance : 50m/100m

Memory : 512K(5000-10000 barcodes)

Battery : 500mA Li-ion battery

Decode Capability :1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5, bar(NW-7),MSI Plessey,ISBM,ISSN,

2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.

Depth of Filed : EAN13(13mul) 50mm -195mm,Code39(5mil) 50mm -105mm,FDF417(6.67mil) 35mm - 135mm

Size : 53mm*36mm*45mm

Weight : 0.038kg

Depth of field angle : 34° V x 46° H

Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°

Working time : Full load≈10hours,Normal use ≈3 to 5days

Temperature: Working : -10℃-60℃ Storage: -20℃-60℃

Support OS : Microsoft Windows iOS.XP/7.0/8.0/10,Android

Packaging Details

Standard List: Scanner *1, Charging Cable *1, USB Receiver *1, Manual *1, Box *1

Single Package Size: 135*107*55mm

Single Gross Weight: 0.12KG
