Wireless Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-6100DW |

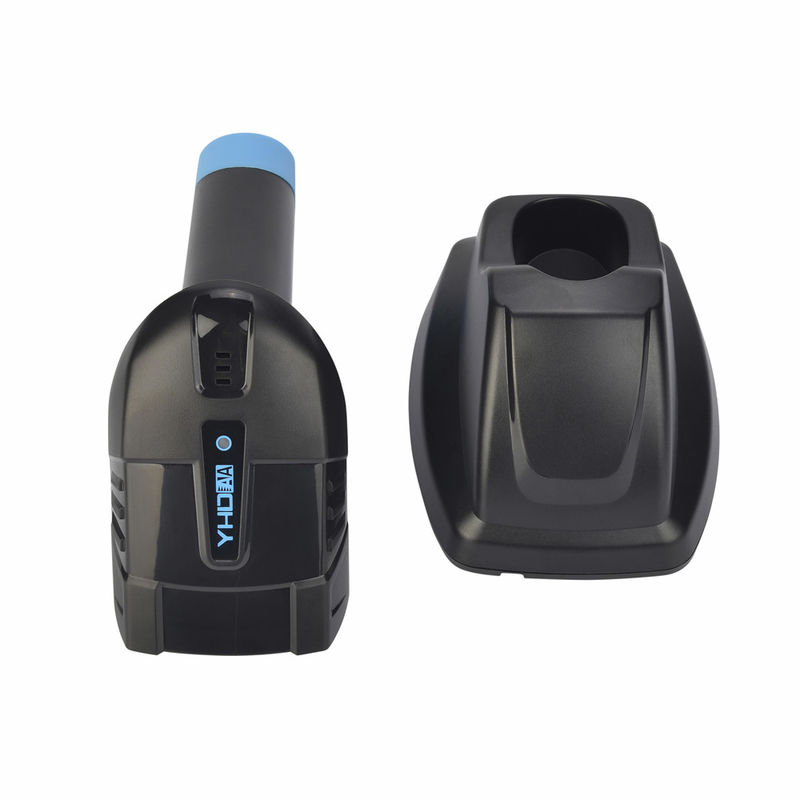

YHDAA 2D Wireless Barcode Scanner with Charging Base,QR Code Scanner for Windows/Mac/iOS/Android
2D BARCODE SCANNER: easily capture all 1D,QR / PDF417/ Data Matrix bar codes on labels, paper, and mobile phone or computer displays.and own 3 Scan Mode:Manual trigger mode / Auto-induction mode / Coutinuous mode
Features
● Factory direct sale, cheap price.
● Can store 100,000 barcode off-line.
● Supports 1D/2D bar-codes on paper/screen.
● Built-in 2200mAh battery, super-long standby time.
● Base supports data transmission and battery charging.
● Support different language for 25 countries.
● 32Bit CPU, Super decoding ability; Read barcode as small as 3 mill.
● Super Network Mode:one to one (one scanner to one receiver), more to one (several scanner to one receiver).
● Support to put prefix or suffix before or after scanned data,support for deleting or adding characters in the middle of barcode.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
Transmission mode: 2.4G Wireless
Storage:100,000 barcodes
Distance:100m
CPU:ARM 32-bit Cortex
Sensor:640*480 CMOS
Interface:USB,USB-COM
Resolution : 4mil
Light aimer : 617nm LED
Battery : 3.7V-2200mAh
Indication : Buzzer & LED
Decoding speed : 500scans/sec
Illumination: 6500K LEDs
Button life : 8000,000 times
Material: ABS+PC
250Lux Depth of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm
Trigger Mode : Handheld,Continuous,Auto-Induction
Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°
Working current : 3.3Vx200mA Standby current :18uA-5mA
Working time : 3 to 10 days
Charging power : 5V-400mA
Anti inference : 0-100000Lux Max
Printing Contract : ≥25%
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Drop test :2m
Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.4kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:14Kg, N.W:12Kg
