| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-6100DW |
YHDAA QR Code Imager Automatic Barcode Reader,Wireless Bar Code Scanner Gun with Charging Base
YHD-6100DW 2D Wireless Barcode Scanner Has strong storage capacity,can store 100,000 barcode off-line.Long distance wireless connection for adding mobility . Delivers up to 400 meters / 0.25 mile transmission away from base station in barrier-free environment,100 meters/ 328 feet transmission in obstacles environment.
Features
● Factory direct sale, cheap price.
● Can store 100,000 barcode off-line.
● Supports 1D/2D bar-codes on paper/screen.
● Built-in 2200mAh battery, super-long standby time.
● Support different language for 25 countries.
● 32Bit CPU, Super decoding ability; Read barcode as small as 3 mill.
● Super Network Mode:one to one (one scanner to one receiver), more to one (several scanner to one receiver).
● Support to put prefix or suffix before or after scanned data,support for deleting or adding characters in the middle of barcode.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
Transmission mode: 2.4G Wireless
Storage:100,000 barcodes
Distance:100m
CPU:ARM 32-bit Cortex
Sensor:640*480 CMOS
Interface:USB,USB-COM
Resolution : 4mil
Light aimer : 617nm LED
Battery : 3.7V-2200mAh
Indication : Buzzer & LED
Decoding speed : 500scans/sec
Illumination: 6500K LEDs
Button life : 8000,000 times
Material: ABS+PC
Decode Capability:
1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128 ,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.
2D: QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode : Handheld,Continuous,Auto-Induction
Working time : 3 to 10 days
Charging power : 5V-400mA
Anti inference : 0-100000Lux Max
Printing Contract : ≥25%
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Drop test :2m
Packaging Details

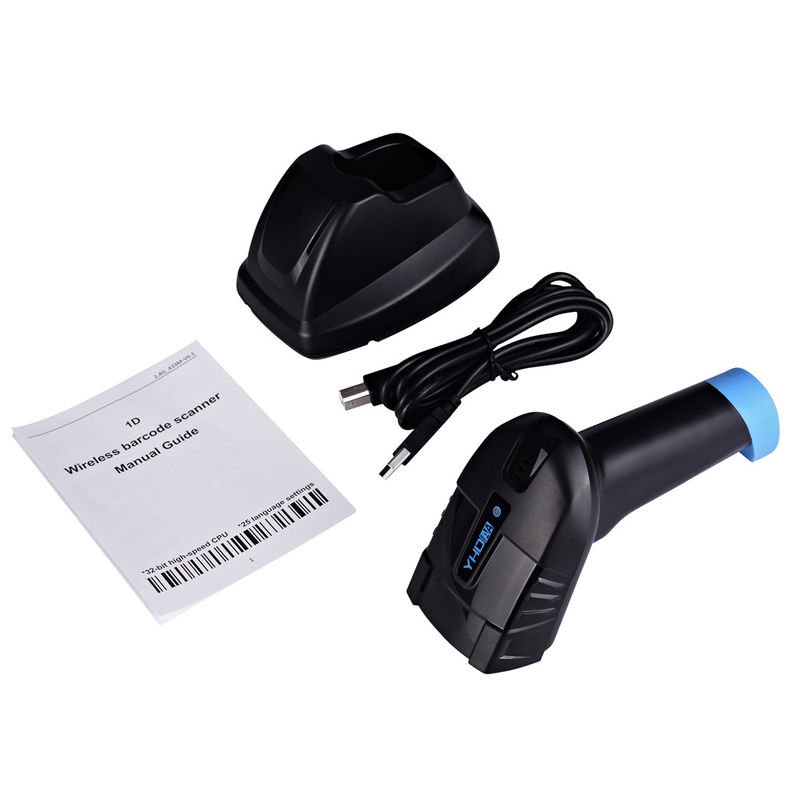

Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.4kg
