Mini Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-M300D |

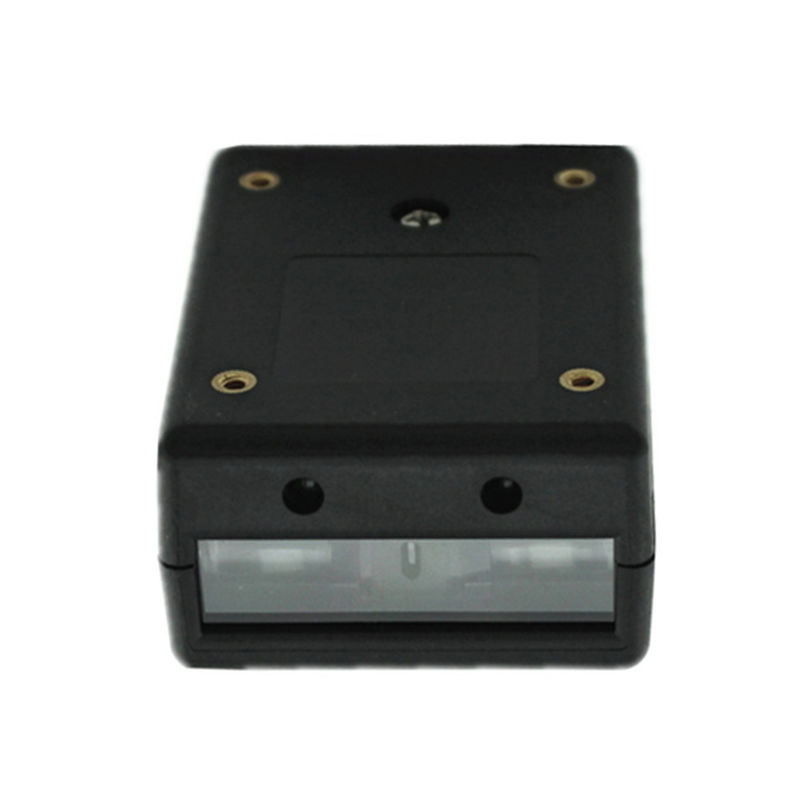

M300D 2D Bar coe Scanner Engine for Self Service,Payment,Kiosk,PDA
Wide Compatibility: Super scanning and decoding ability, can read incomplete and fuzzy codes.Supports reading a wide range of barcodes types: Code128, EAN-13, EAN-8, Code39,UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ISBN, Code 93, UCC/EAN-128, GS1 Databar etc.
Features
● Powerful decoding capacity for most 1D and 2D codes.
● Plug and play, driver-free, convenient for usage.
● Supports Continuous/Auto-Induction , 2modes for option.
● Can scan the phone, computer and other electronic screen.
● Small size,easily to integrate into any device, especially for limit space application.
● Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,etc.
● Can be customized according to customer demand.
Technical parameters
Imaging Sensor : CMOS
Optical Source : 620nm Visible red light diode
Trigger Mode : Continuous,Auto-Induction
Indication : Buzzer & LED
Resolution Ratio : 640×480 CMOS (300,000 pixel)
Decoding Speed : 500times/second
Interface : RS232,USB,TTL,Micro USB
Resolution : 4mil
Weight (without cable) : 22g
Dimensions(scanner) : 50×37×22 mm (Length x Width x Height)
Minimum Contrast : ≥ 25%
Decoding Capability :
1D : UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.
2D : PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc
Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL),20-150mm,PDF417(6.8MIL),15-250mm QR Code(20MIL)
Scan Angle : Roll 360°, Pitch± 65°, Skew ±60°
Current Max. : 212mA
Working :156mA～212mA
Stand-by : 156mA
Working Voltage : DC3.3V
Storage Temperature : -40°C ~ 70°C / -40°to 158°F
Working Temperature : -20°C ~ 60°C / -4°to 140°F
Relative Humidity : 0%-95%Relative humidity,no condensation state
Drop test : 1.5m fall to concrete
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner Module *1, Cable *1, Manual *1, Box *1.
Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)
Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)
Carton: 50pcs/7KG( USB/TTL/Micro USB) ; Carton Size: 470*220*260mm
Carton: 50pcs/9KG(RS232) ; Carton Size: 600*300*240mm
