Home
>
PRODUCTS
>
Mini Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-3200DB |

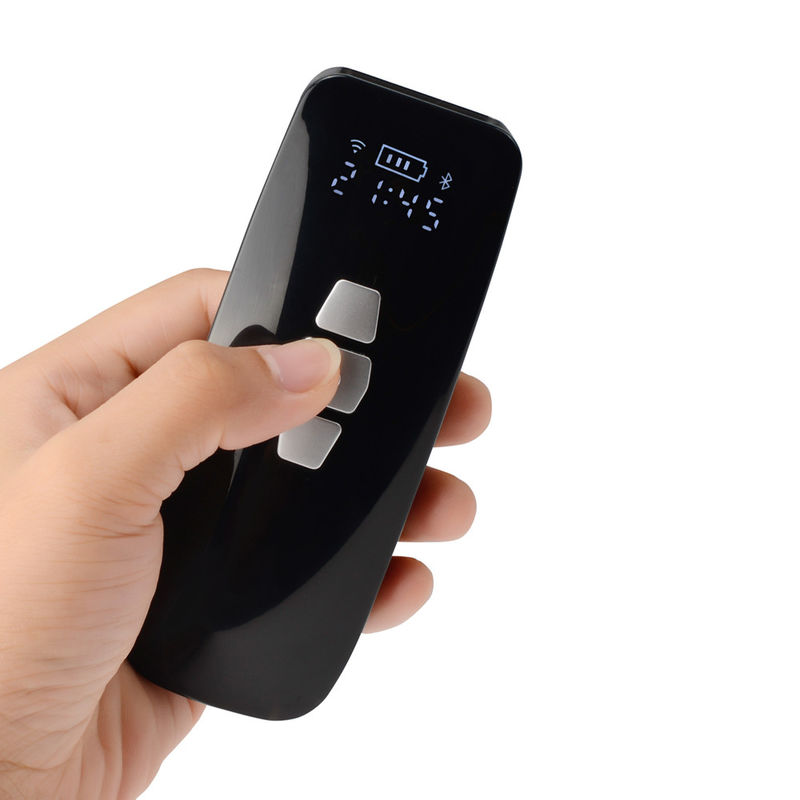

2D Bluetooth Pocket Barcode Scanner Mini Portable Scanner For Inventory
YHD-3200DB Mini Barcode Scanner is a 1D/2D barcode scanner offering fast and accurate scanning performance. It is designed for Android smartphone applications, and it is perfect for barcode scanning applications such as retail stores, warehouse management, logistics tracking, etc. Its excellent features include a 640*480 CMOS Sensor, a 60° scanning angle, an operating temperature range of -20°C to 50°C, a print contrast of ≥25%, and a depth of field of 30-600mm. It comes with powerful and efficient decoding capabilities, making it a reliable and efficient barcode scanner for any application.
1.Features
● Bluetooth/2.4G/Wired Mode, 3modes for option.
● Support HID/SPP/BLE mode and can switch.
● Supports instant upload mode and storage mode.
● Excellent decoding ability, fast to scan 1D and 2D barcodes on paper/screen.
● Built-in 1500mAh Battery, it can support 18 hours Continuous scanning and 2 months standby after 4hours full charge.
● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
● Can be customized according to customer demand.
| Product Specification: YHD-3200DB 2D Bluetooth Barcode Scanner | |
| Parameters | |
| Working current:3.5 V ± 10%x100mA | Light source:617LED |
| Sensor:640*480 CMOS | lumination: 6500K LEDs |
|
CPU:ARM 32-bit Cortex
|
Decoding speed:500/sec |
| Depth of Filed:30-600mm | Indication:Buzzer & LED |
| Decoding accuracy:≥4mil | |
| Trigger Mode:Button,Continuous,Auto-Induction | |
| Printing Contract :≥25% | |
| Scanning angle:Angle of rotation±360°,inclination± 65°,declination ± 60° | |
| Anti-interference:0-100000Lux Max | |
|
Decode Capability: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93, Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5(IATA), Coda bar(NW-7),MSI Plessey,ISBM,ISSN,China post etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc.2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc.
|
|
| Button life :8000,000 times | LED life:100000 hours |
| Drop test :2m | Transmission:Bluetooth & 2.4G &USB-Wire |
| Working temperature:-20℃ to 50℃ | Relative humidity:5%-95% |
| Wireless type:Bluetooth/2.4G Wireless | Transmission distance:50m/100m |
| Battery:3.7V-1500mAh | Charging power:5V-400mA |
| Working mode:Instant upload mode,Storage mode, Not lost mode | |
| Storage:16M=100000 barcodes | |
| Working time:Full load≈18hours,Normal use ≈3 to 10days | |
3.Packaging Details
Standard List: Scanner *1, Charging Cable *1, Receiver*1, Manual *1 ,Sling* 1, Box* 1
Single Package Size: 160*100*35mm
Single Gross Weight: 0.16kg
