1D Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-1100C |

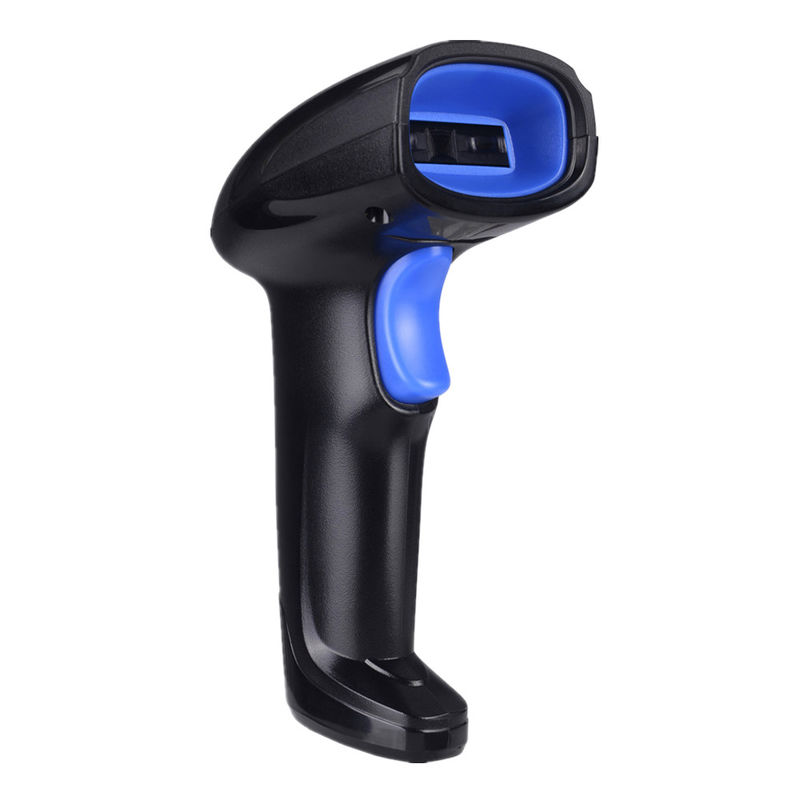

1D CCD Wired Barcode Scanner Machine Can Scan From Mobile Computer Screen YHD-1100C
YHD-1100C barcode scanner no need to install any drivers and software, just connect the device via one USB cable, this bar code reader will be ready work for us. support work with laptop, desktop, and POS, compatible with Windows XP/7/8/10, Mac OS(If the port of Mac isType-C, then you need aTypeC convert to USB cable, because the port of our product is USB, not included in the package), Linux, Android system
Features
● Factory direct sale, Low price high performance.
● Scan speed: 200 Scans/sec
● Can scan the phone, computer and other electronic screen.
● Super scanning and decoding ability, can read incomplete and fuzzy codes.
● Support multi keyboard language (English, Spanish, French, German etc).
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
● Can be customized according to customer demand.
Technical parameters
Optical Source : 620nm Visible red light diode
Imaging Sensor : CCD
Resolution Ratio : 1500 pixel
Interface : RS232,USB
Scan speed : 200 Scans/sec
Resolution : 4mil
Print Contrast : 30% minimum reflectance difference
BER : 1/5million
Shell Material : ABS + PC
Trigger Mode : Handheld,Continuous
Depth of field : 2mm-500mm
Indication : Buzzer, LED
Scanning angle : ± 60 ° ± 65 ° ± 42 ° (left and right, front and rear, turn)
Decoding capability : UPC / EAN / JAN, UPC / EAN with Supplementals, UCC / EAN 128,Code 39, MSI, Code11, Code 39 Full ASCII,, Code 128,Code 128Full ASCII, Codabar, Code93, Discrete2of5, RSSvariants,Codabar, Chinese2of5, Inteleaved2 / 5, Interleaved2of5, etc.
Power : 250 mW (work): 500 mW (maximum instantaneous)
Current : 50 mA (work): 100 mA (maximum instantaneous)
The light intensity : 3000-12000Lux
Charging input voltage : DC 5V ± 0.25 V
Temperature : -20 ℃to50 ℃(work):-40 ℃to60 ℃(storage)
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, USB Cable *1, Manual *1, Box *1.
Single Package Size: 200*70*100mm
Single Gross Weight: 0.25kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:13Kg, N.W:11Kg
