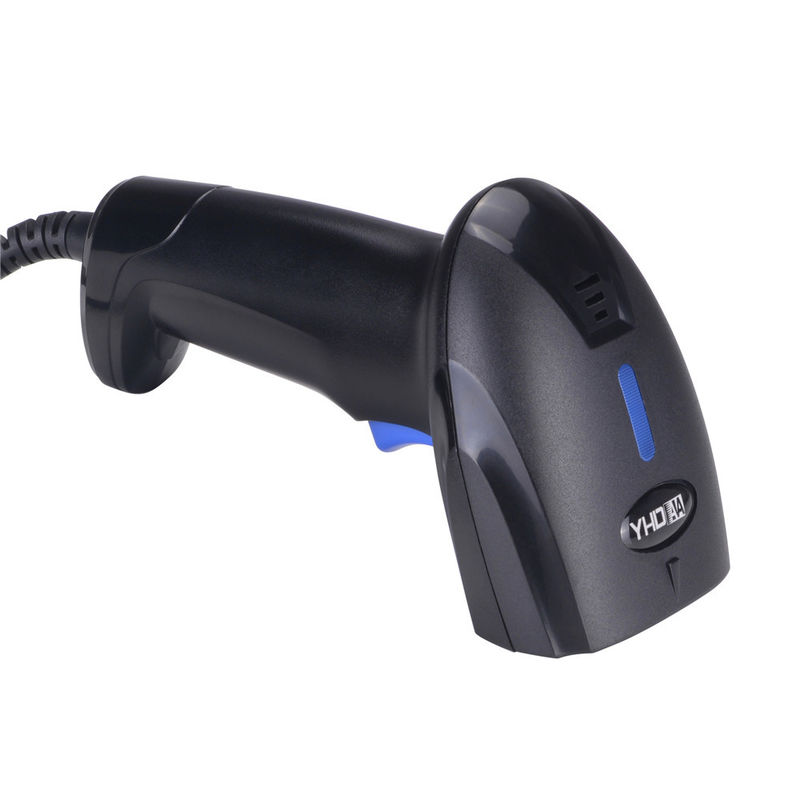

Cheap Price Bar Code Reader 1D Laser Scan Handheld Barcode Scanner YHD-1100L
This USB wired barcode scanner with key trigger scanning , auto-sensing scanning and continuous scanning mode, we can according to our needs to choose different scanning ways. Widely used in supermarkets, bookstore, shopping malls, retails, logistics, warehouse and others for file management, inventory tracking and point of sale.
Features
● Factory direct sale, Low price high performance.
● No driver needed,plug and play.
● Support the multinational language keyboard.
● Service life of button reaches up to 5 million times.
● 32-Bit ARM processor and scan speed 300scans/sec.
● Manual trigger/continuous scan(for choice),very comfortable operating.
● Dopt a highly integrated design, high quality shell, have IP45 protection grade.
● Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8,10.
● Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Technical parameters
Scanning type : Bi-directional
CPU ARM : 32-bit Cortex
Light source : 650 nm visual laser diode
Trigger Mode : Handheld,Continuous
Indication : Buzzer & LED
Printing Contract : ≥25%
Resolution : 4mil
Decoding speed : 300scans/sec
Bit error rate : 1/5millon
Scanning width : 5-30cm
Decoding Capability : UPC/EAN,with complementary UPC/EAN Code128,Code39,Code 39Full,ASCII,Coda bar,industrial/Interleaved2 of 5,Code93,MSI,Code11, ISBN,ISSN,China post,etc
Button life : 5000,000 times ; laser life:12000 hours
Interface : USB / RS232 / PS2 / TTL
Voltage : 5/3.3 V
Operating current : 40ma(operation mode); 28ma(standby mode),154ma(max peak)
Temperature Working : -20℃-50℃ Storage: -40℃-60℃
Material : ABS+PC
Drop test : 1.8m fall to concrete
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, USB Cable *1, Manual *1, Box *1.
Single Package Size: 200*70*100mm
Single Gross Weight: 0.25kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:13Kg, N.W:11Kg
