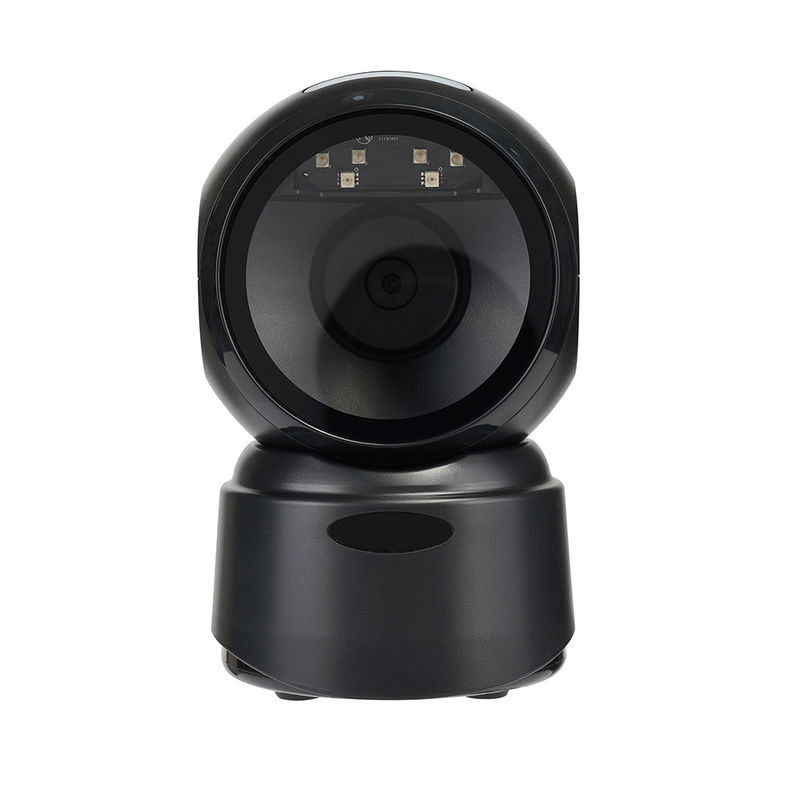

QR Code Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-9300D |
Optical resolution : CMOS 640 pixels (H) x 480 pixels (V)
Lighting source : red LED supplement
Resolution : ≥4mil
Scanning speed : 1800 times/s
Scanning angle : Roll 360°/ Pitch ±65°/ Yaw ±65°
Field of View : 39°(H) X29°(V)
Sweeping barcode type : paper, thin film medium one-dimensional; mobile phone, flat screen, etc.
Printing contrast : 20%
Error rate : ≤1/2,000,000
Interface type : USB
Prompt mode : Buzzer, LED
Decoding Capability :
1D: Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industrial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,China Post(Hong Kong 2 of 5),Korea Post.
2D: PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN, etc.
Electric voltage : 5V DC
Current : Work Current 320mA, Stand-by Current 235mA, Starting Current 315mA
Ambient Light : Immunity 0-100,000 Lux
Weight : 249g
Working temperature : -20℃～60℃
Storage temperature : -30℃～70℃
Humidity 5% to 95% relative hum idity,non-condensing
Drop test : 2m
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 170*120*105mm
Single Gross Weight: 0.35kg
30pcs/CTN Carton Size: 520*425*370mm
30pcs/CTN Carton G.W.:12Kg, N.W:11Kg
