Bluetooth Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5700LB |

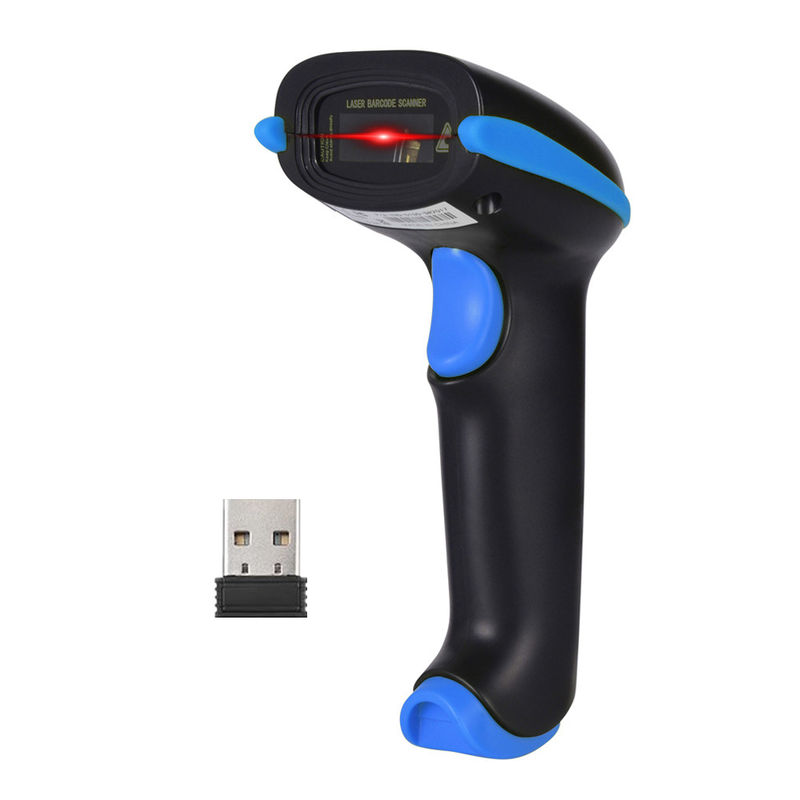

1D Laser Barcode Reader Handheld Scanner Machine Support OEM ODM YHD-5700LB
To create the best scanning experience, we pioneeringly combine 3 connection in use. Compatible with 2.4G Wireless connection receiver; Bluetooth Function; Wired usb connection. Easily connected with your laptop, PC, mobile phone, tablet, iphone, ipad, POS. Work with Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS.
Features
● Support SPP and HID mode.
● Bluetooth/2.4G/Wired Mode, 3modes for option.
● Service life of button reaches up to 8 million times.
● Support over sixteen different countries' keyboard layout.
● Built-in 2600mAh battery, super-long standby time.
● Support to put prefix or suffix before or after scanned data,turn on/ off buzzer, identity barcode type, add keyboard keys (TAB, CR&LF, etc.)
● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS..
Technical parameters
Transmission mode : Bluetooth/2.4G/Wired
Scanning type : bi-directional
Distance : 50m/100m/1.5m
CPU : ARM 32-bit Cortex
Storage : 100,000 barcodes
Battery: 3.7V-2600mAh
Trigger Mode : Button,Continuous
Light source : 650nm LD
Printing Contract : ≥25%
Indication : Buzzer & LED
Resolution : 3.3mil
Scanning width : 30cm
Decoding speed : 300scans/sec
Bit error rate : 1/20million
Button life : 8000,000 times
laser life : 12000 hours
Depth Of Field : 3.3mil 2mm-100mm,10mil 2mm-350mm,15.6mil 5mm-600mm,35mil 10mm-1000mm
Decoding Capability:
1D : UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,etc
Scanning angle : rotor angel±30°,inclination± 45°,declination ± 60°
Working current : 3.3Vx40mA Standby current :18uA-5mA
Charging power:5V-400mA
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Drop test :2.0m
Packaging Details
Standard List: Scanner*1, USB Cable *1, Receiver*1, Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:14Kg, N.W.:11Kg
