Bluetooth Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-1100LB |

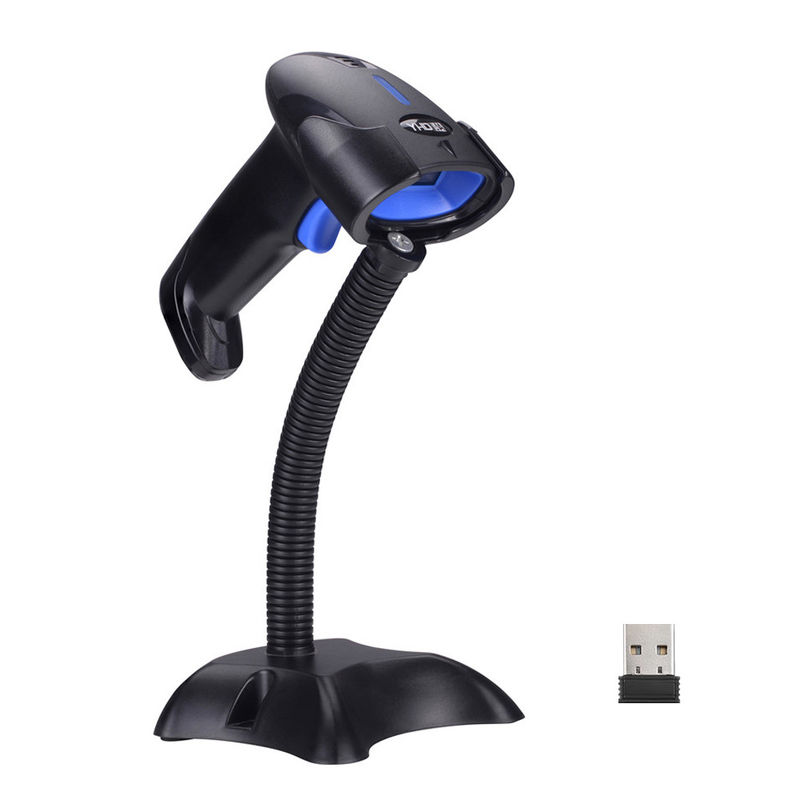

Bluetooth Barcode Reader Hand held Scanners APP Inventory Fast Decoding Scanner YHD-1100LB
Features
● Bluetooth/2.4G/Wired Mode, 3modes for option.
● 32-Bit ARM processor and scan speed 300scans/sec.
● Supports instant upload mode and storage mode.
● Support the multinational language keyboard.
● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
● Built-in 1800mAh Battery, it can support 20 hours Continuous scanning and 2 months standby after 4hours full charge.
● Support turn on or off the sound, hide/add custom prefix/suffix digits, delete character, add keyboard keys (TAB, CR&LF, etc.)
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
● Can be customized according to customer demand.
Technical parameters
Transmission mode : Bluetooth/2.4G/Wired Scanning type: Bi-directional
Distance : 50m/100m/1.5m
CPU:ARM 32-bit Cortex
Storage : 10000 barcodes
Battery: 1800mAh
Trigger Mode : Handheld,Continuous
Light source : 650nm LD
Printing Contract : ≥25%
Indication:Buzzer & LED
Resolution : 4mil
Scanning width : 5-30cm
Decoding speed : 300scans/sec
Bit error rate :1/5million
Button life : 5000,000 times
Laser life:12000 hours
Depth Of Field 4mil 2mm-85mm,10mil 2mm-320mm,15.6mil 5mm-580mm,35mil 10mm-900mm
Decoding Capability:1D:UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,etc
Scanning angle : rotor angel±30°,inclination± 55°,declination ± 60°
Anti inference : industrial lighting or sun will not make any difference
Temperature : Working : -20℃-50℃ Storage: -40℃-60℃
Working current : 38mA--185mA(max peak) Standby current :30mA
Working time : 3 to 7days
Charging power : 5V
Material : ABS+PC
Drop test : 1.8m
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner *1, Charging Cable *1, USB Receiver *1, Manual *1, Box *1.
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28KG
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:14Kg, N.W:12Kg
