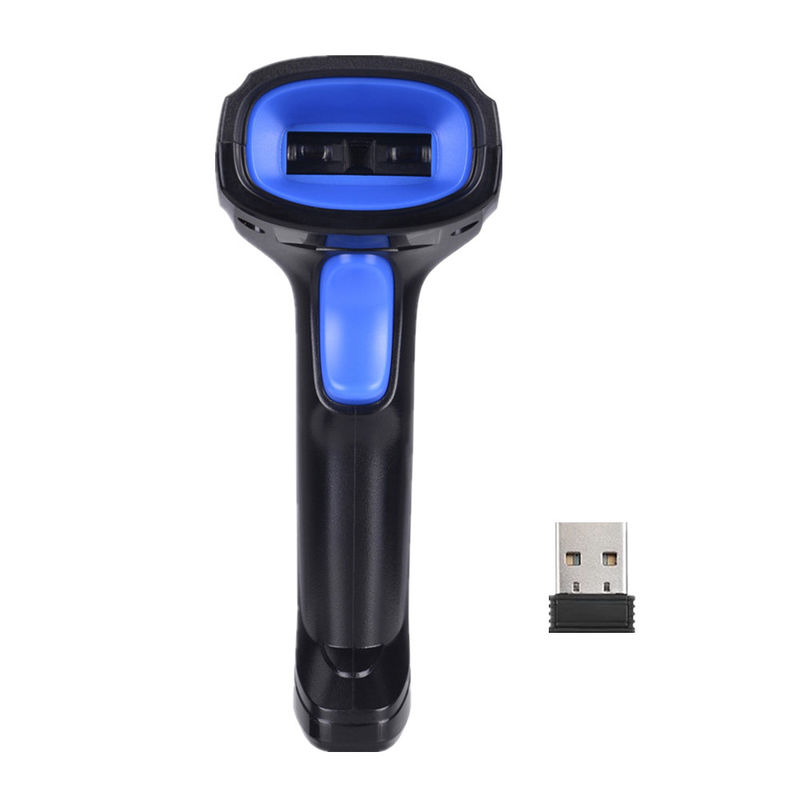

2D 1D Qr Code Reader Wireless Handheld USB Barcode Scanner YHD-1100DW

2D 1D Qr Code Reader Wireless & Usb Barcode Scanner Handheld Bar Code Scanners

YHD-1100DW

Built-in 1800mAh Battery, wireless barcode scanner can support 72 hours Continuous working,Our barcode scanner support longer usage, which can help you extend working hours and improve work efficiency.

Features

● Powerful decode ability, fast scanning 1D/2D barcodes.
● Factory direct sale, Low price high performance.

● With mini USB receiver, plug and play.

● Support reading bar codes from screen.

● Large capacity battery,1800MAH Li-ion battery.

● 2.4GHz wireless and USB wired connection,2modes for option.

● Supports Handheld / Continuous / Auto-Induction , 3modes for option.

● 2.4G Wireless communication distance outdoor 100m,indoor 80m.

● Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8,10.

● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

● Can be customized according to customer demand.

Technical parameters

Transmission mode: 2.4G wireless/wired

Storage:10000 barcodes

Distance:100m/1.5m

CPU:ARM 32-bit Cortex

Sensor:640*480 CMOS

Interface:USB,USB-COM

Resolution :4mil

Light aimer: 617nm LED

Battery: 1800mAh

Indication:Buzzer & LED

Decoding speed:500scans/sec

Illumination: 6500K LEDs

Button life :5000,000 times

Printing contract :≥25%

250Lux Dept of Field : 13mil-EAN13 50-240mm,4mil-code39 50-90mm,20mil-QR 40-280mm,10mil-PDF417 40-250mm

Decode Capability:

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,

Coda bar,MSI Plessey,RSS,etc.

2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc.

Trigger Mode : Handheld,Continuous,Auto-Induction

Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°

Working Temperature : -20℃-50℃ Storage Temperature: -40℃-60℃

Working current : 38mA--185mA(max peak) Standby current :30mA

Working time : 3 to 7days

Charging power : 5V

Anti inference : 0-100000Lux Max

Relative Humidity : 0 ~ 95%

Drop test : 2m

Certificate : CE,FCC,ROHS,IP54,FDA,SGS
