Wireless Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YH1100CW |

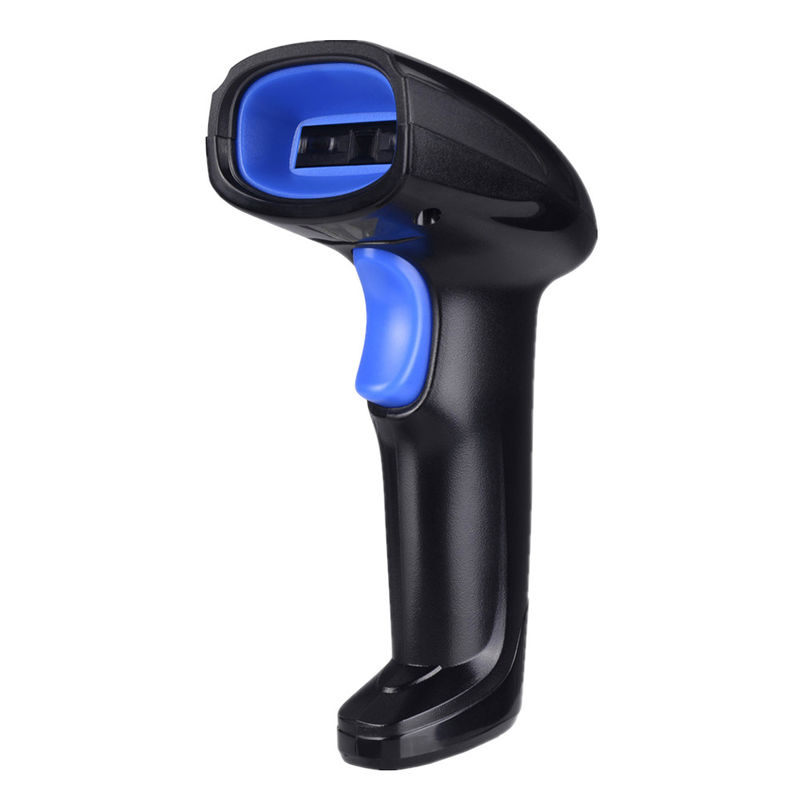

Handheld Wireless 1D CCD Barcode Scanner For Retail Supermaerket YHD-1100CW
Features
● Plug and play, not need install any procedure.
● Supports Handheld/Continuous mode.
● Large capacity battery,1800MAH Li-ion battery.
● 2.4G Wireless communication distance outdoor 100m,indoor 80m.
● Can scan the phone, computer and other electronic screen.
● Support to put prefix or suffix before or after scanned data.
● Super scanning and decoding ability, can read incomplete and fuzzy codes.
● Ergonomic design offer comfortable operation and enhance the working efficiency.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
● Can be customized according to customer demand.
Technical parameters
Transmission mode : 2.4G Wireless/Wired
Imaging Sensor :CCD
Distance : 100m/1.5m
CPU : ARM 32-bit Cortex
Storage : 10000 barcodes
Battery : 1800mAh
Trigger Mode : Button,Continuous
Optical Source:620nm Visible red light diode
Printing Contract : ≥25%
Indication : Buzzer & LED
Resolution :4mil
Scanning width : 30cm
Decoding speed:200scans/sec
Button life :5000,000 times
Shell Material: ABS + PC
BER: 1/5million
Depth Of Field : 4mil 2mm-280mm,10mil 2mm-380mm,15.6mil 5mm-650mm,35mil 10mm-1000mm
Decoding Capability:
1D:UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,etc
Scanning angle:± 60 ° ± 65 ° ± 42 ° (left and right, front and rear, turn)
Power : 250 mW (work): 500 mW (maximum instantaneous)
Current : 50 mA (work): 100 mA (maximum instantaneous)
Working time : 3 to 10 days
Charging power : DC 5V ± 0.25 V
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Drop test :2.0m
Packaging Details
Standard List: Scanner*1, Charging Cable *1, USB Receiver *1, Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28KG
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:14Kg, N.W:12Kg
