Industrial 2D Barcode Scanner Wireless 400m Transmission Distance Customized

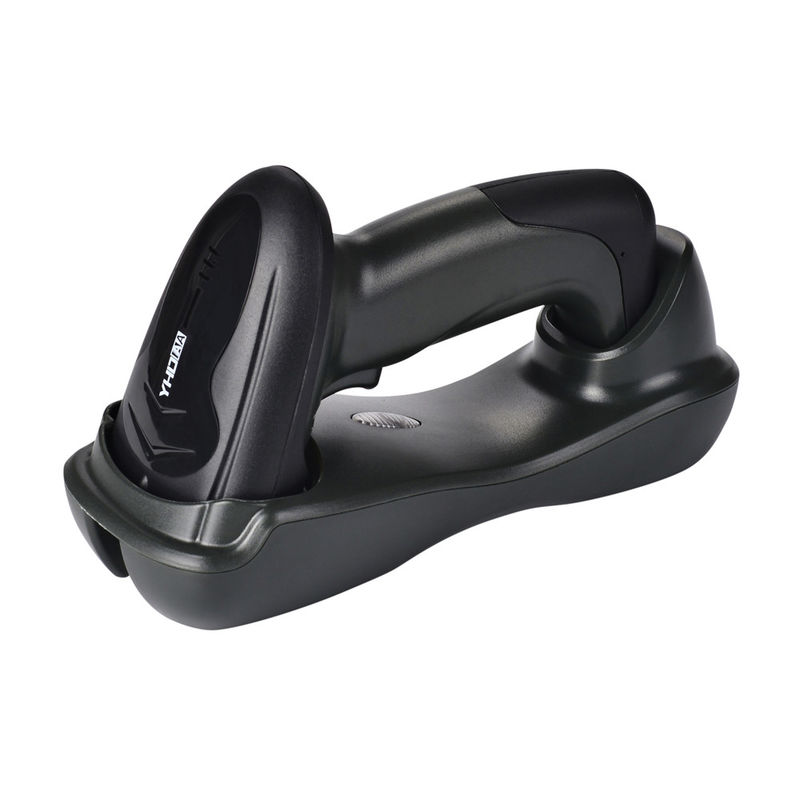

2D Industrial Barcode Scanner with Cordless Charging Stand,400m Transmission Distance

USB plug-and-play, no driver installation needed.Just plug USB into USB port of your device and run a EXCEL/WORD file or other appliaction then scan,barcode is entered into the field your cursor is in.Utility cradle can be used as a receiver or a charging base.

Features

● High decoding ability and high performance

● Large capacity battery,2600MAH Li-ion battery.

● Super memory function, can store up to 300,000 barcodes.

● Super paring function, support one to one, one to many, many to one.

● Supports 1D/2D bar-codes on paper/screen.

● Base function as receiver and charger,free of charging trouble.

● Super transmission distance, 500m effective open distance(50-200m indoor distance).

● The head of the scanner, the handle and the base are protected by rubber, Antiknock, full quakeproof design, withstand 3m drops.

● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

● Can be customized according to customer demand.

Technical parameters

Transmission mode : 433M wireless Storage:300,000 barcodes

Distance : 500m

CPU : ARM 32-bit Cortex

Sensor : 640*480 CMOS

Interface : USB

Resolution : 4mil

Light aimer : 617nm LED

Battery : 3.7V-2600mAh

Indication : Buzzer & LED

Decoding speed : 500scans/sec

Illumination : 6500K LEDs

Button life : 8000,000 times

Hull material: ABS+Rubber

250Lux Depth of Field : 13mil-EAN13 60-290mm,4mil-code39 30-150mm,15mil-QR 20-300mm,15mil-PDF417 40-300mm

Decode Capability :

1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,

Coda bar,MSI Plessey,RSS,etc.

2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.

Trigger Mode : Handheld,Continuous,Auto-Induction

Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°

Temperature storage : -40°C ~ 60°C Temperature working: -20℃ to 60℃

Working time : 3 to 10 days

Relative Humidity: 0 ~ 95%

Anti inference : 0-100000Lux Max

Printing Contract : ≥25%

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Drop test : 3m

Packaging Details

Standard List: Scanner *1, Charging Cable *1, Charging Base *1, Manual *1, Box *1.

Single Package Size: 200*85*145mm

Single Gross Weight: 0.50kg

​​
