Wireless Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-6100LW |

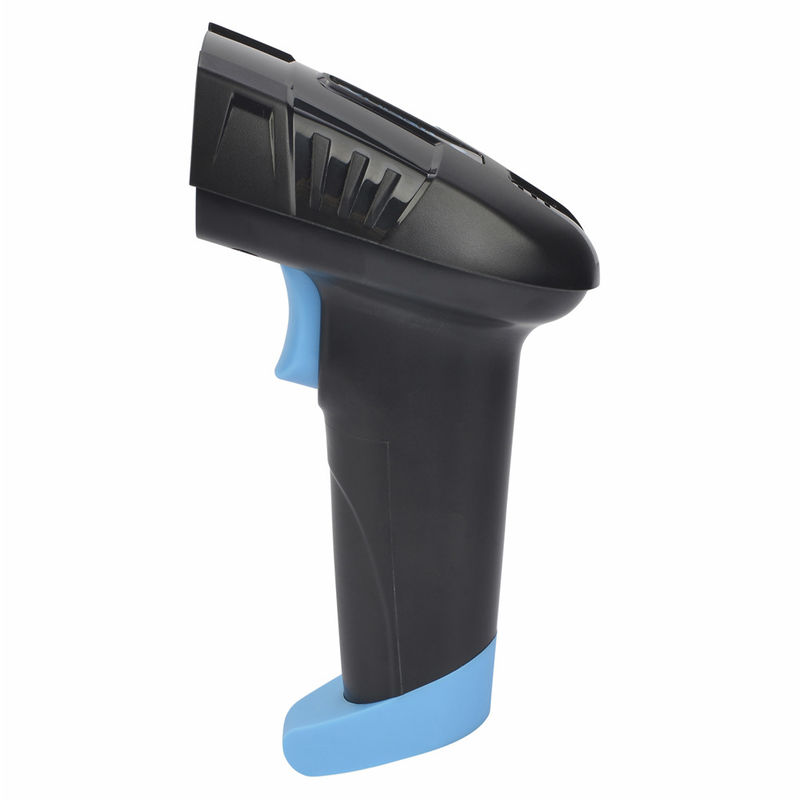

Handheld Wireless Laser Barcode Scanner,Bar Code Scanner 1D Barcode Reader for Warehouse Inventory
YHD-6100LW 1D Wireless Barcode Scanner with Base , scanner is hand held with an ergonomic, lightweight design. Built to be used reliability all day long while reducing employee fatigue allowing this scanner to be used in a wide variety of business situations
Features
● Factory direct sale, cheap price.
● Can store 100,000 barcode off-line.
● Built-in 1500mAh battery, super-long standby time.
● Base supports data transmission and battery charging.
● Support different language for 25 countries.
● 32Bit CPU, Super decoding ability; Read barcode as small as 3 mill.
● Super Network Mode:one to one (one scanner to one receiver), more to one (several scanner to one receiver).
● Support to put prefix or suffix before or after scanned data,support for deleting or adding
Technical parameters
This is YHD-6100LW 1D Wireless Barcode Scanner with Base
Transmission mode : 2.4G Storage : 100000 barcodes
Distance : 100m
Material : ABS+PC
Working current : 3.5Vx40mA
Standby current : 18uA-5mA
Working time : 3 to 10 days
Charging power : 5V-400mA
Scanning type : bi-directional
Battery : 3.7V-1500mAh
Printing Contract : ≥25%
Indication : Buzzer & LED
Depth of Field : 3mil 2mm-100mm
CPU : ARM 32-bit Cortex
Resolution : 3mil
Decoding speed : 300scans/sec
BER : 1/20million,10mil 2mm-350mm,15mil 5mm-500mm,30mil 10mm-800mm
Trigger Mode : Button,Continuous
Scanning angle : Angle of rotation±30°,inclination± 45°,declination ± 60°
Button life : 800,000 times
laser life : 12000 hours
Interface : USB,USB-COM
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1, Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.4kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:14Kg, N.W:12Kg
