2D Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5700D+ |
YHDAA 5700D+ USB Wired Barcode Scanner QR, 328 Feet Transmission Distance Hands-Free Bar code Reader

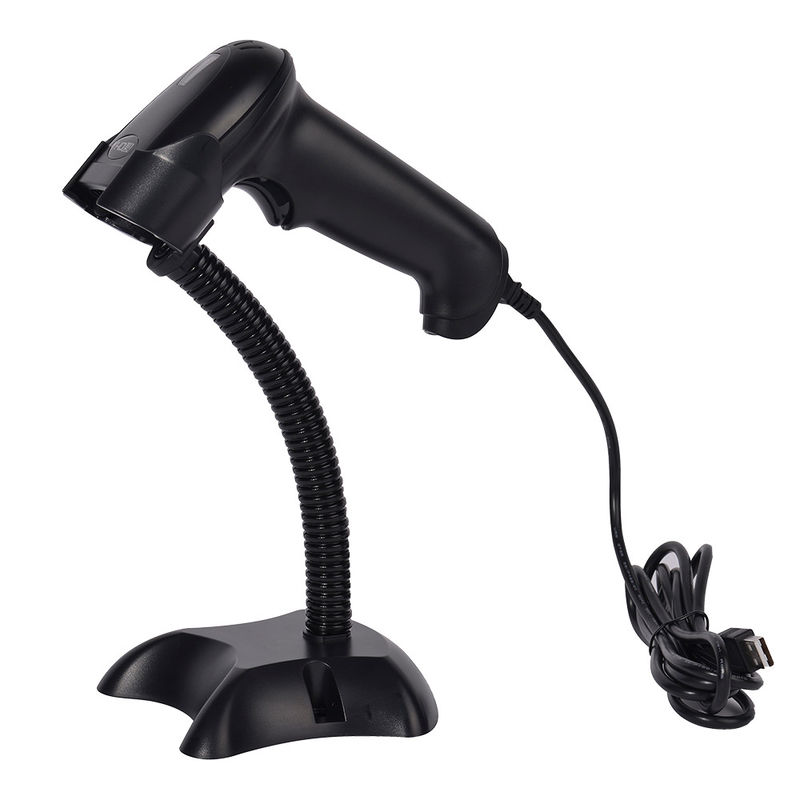

YHD-5700D+ wired 2D barcode scanner with stand has a USB cable for connection. There is no need to install any driver or software. It is Compatible with Windows, Mac OS, Linux, IOS and Android, works with common software, such as Word, Excel, Novell, etc.
Features
● Color:Yellow/ Black/ Green/Blue Optional.
● Factory direct sale, cheap price.
● Plug and play, work with all POS system.
● Strong decoding ability, can scan 1D/2D barcodes on paper, screen.
● Support more 16 kinds keyboard languages, can be used in many countries.
● Support to put prefix or suffix before or after scanned data,turn on/ off buzzer,identity barcode type, add keyboard keys (TAB, CR&LF, etc.)
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
CPU : ARM 32-bit Cortex
Sensor :CMOS 640*480
Resolution : 4mil
Light aimer :624nm LED
Material:ABS+PC
Indication : Buzzer & LED
Decoding speed : 500scans/sec
Anti inference:0-100000Lux Max
Button life : 8000,000 times
250Lux Depth of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm
Decode Capability:
1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode : Handheld,Continuous, Auto-Induction
Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°
Temperature : -20℃-50℃(Working) -40℃-70℃(Storage)
Interface : TTL,RS232,KBW,USB
Operating Humidity : 5 - 95% (non-condensing)
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, Cable *1,Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28kg
