2D Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5700D+ |

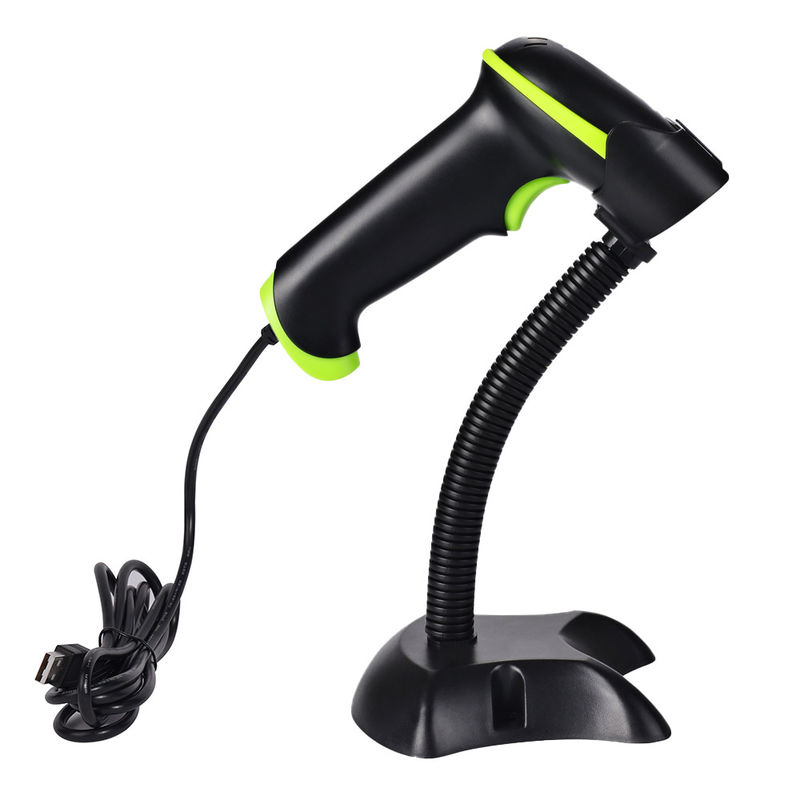

YHDAA 5700D+ USB Wired Barcode Scanner QR, 328 Feet Transmission Distance Hands-Free Bar code Reader
YHD-5700D+ barcode scanner is made of high quality ABS plastic, flexible adjustable stand for hands-free scanning, ergonomic design, comfortable feel to grip.Supports a wide range of barcodes types: Code11, Code39, Code93, Code32, Code128, Coda Bar, UPC-A, UPC-E, EAN-8, EAN-13, JAN.EAN/UPC Add-on2/5 MSI/Plessey, Telepen and China Postal Code,Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, more for Request
Features
● Color:Yellow/ Black/ Green/Blue Optional.
● Factory direct sale, cheap price.
● Plug and play, work with all POS system.
● Strong decoding ability, can scan 1D/2D barcodes on paper, screen.
● Support more 16 kinds keyboard languages, can be used in many countries.
● Support to put prefix or suffix before or after scanned data,turn on/ off buzzer,identity barcode type, add keyboard keys (TAB, CR&LF, etc.)
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
CPU : ARM 32-bit Cortex
Sensor :CMOS 640*480
Resolution : 4mil
Light aimer :624nm LED
Printing Contract : ≥25%
Material:ABS+PC
Indication : Buzzer & LED
Drop test : 2m
Decoding speed : 500scans/sec
Anti inference:0-100000Lux Max
Button life : 8000,000 times
Voltage : 5V DC
250Lux Depth of Field : 13mil-EAN13 50-250mm,4mil-code39 60-100mm,20mil-QR 40-300mm,10mil-PDF417 40-280mm
Decode Capability:
1D : UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode : Handheld,Continuous, Auto-Induction
Scanning angle : Angle of rotation360°,inclination± 65°,declination ± 60°
Temperature : -20℃-50℃(Working) -40℃-70℃(Storage)
Interface : TTL,RS232,KBW,USB
Operating Humidity : 5 - 95% (non-condensing)
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, Cable *1,Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28kg
