Wireless Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5700DW |

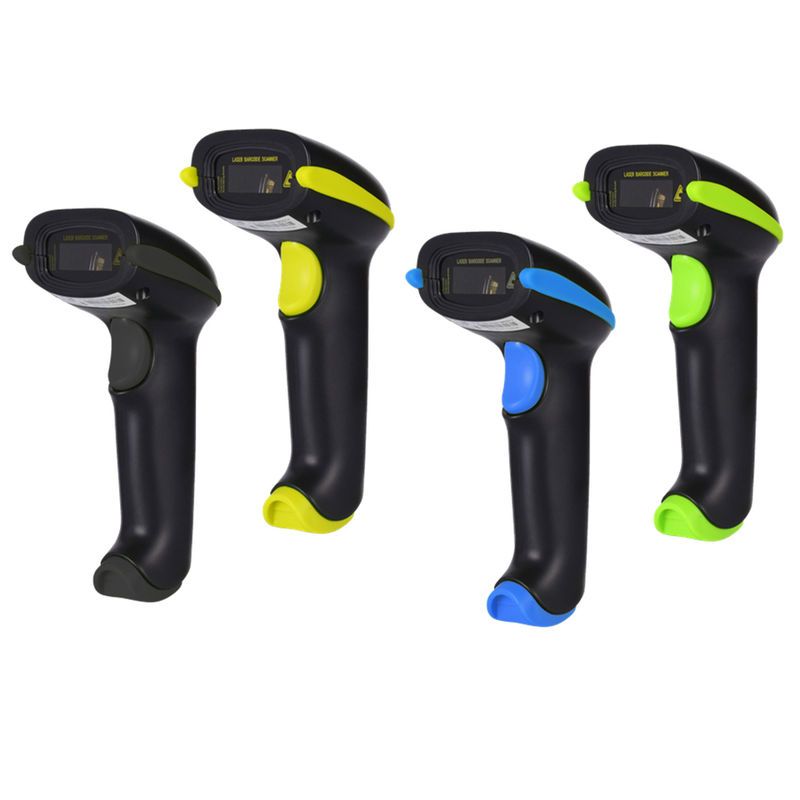

2D Android Bar Qr Code Scanner Machine with Good Performance For Supermarket
YHD-5700DW is an amazing scanner, lightweight scanning gun which enables fast, wireless scanning of QR codes on both Android and iOS platforms. It is small in size, fits comfortably in your hands, and is easy to carry around. It can quickly scan QR codes, allowing you to access the data embedded in the code with ease.
1.Features
● Excellent decoding ability, high speed and low error rate.
● Built-in 2600mAh battery, super-long standby time.
● Shockproof design, ensures for long service life.
● Supports Handheld/Continuous/Auto-Induction , 3modes for option.
● 2.4G wireless and USB wired connecting mode, plug and play, no need to install driver.
● Support more 16 kinds keyboard languages, can be used in many countries.
● Adopts 2.4G wireless communication technology, 60m indoors and 100m in open space.
● It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile phone and computer screen, and it also can read 2D barcodes.
| Product Specification: YHD-5700DW 2D Wireless Barcode Scanner | ||
| Scanner parameters: | ||
| Transmission mode: 2.4G wireless/wired | Storage:100,000 barcodes | |
| Distance:100m/1.5m | CPU:ARM 32-bit Cortex | |
| Sensor:640*480 CMOS | Interface:USB,USB-COM | |
| Resolution :4mil | Light aimer: 617nm LED | |
| Battery: 3.7V-2600mAh | Indication:Buzzer & LED | |
| Decoding speed:500scans/sec | Illumination: 6500K LEDs | |
| Button life :8000,000 times | Printing contract :≥25% | |
|
250Lux Depth of Field |
13mil-EAN13 | 50-250mm |
| 4mil-code39 | 60-100mm | |
| 20mil-QR | 40-300mm | |
| 10mil-PDF417 | 40-280mm | |
|
Decode Capability: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5, Coda bar,MSI Plessey,RSS,etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc. |
||
| Trigger Mode:Handheld,Continuous,Auto-Induction | ||
| Scanning angle:Angle of rotation360°,inclination± 65°,declination ± 60° | ||
| Working current:3.3Vx200mA | Standby current :18uA-5mA | |
| Working time :3 to 10 days | Charging power:5V-400mA | |
| Anti inference:0-100000Lux Max | Relative Humidity: 0 ~ 95% | |
| Certificate :CE,FCC,RoHS,IP54 | Drop test :2m | |
3.Packaging Details
Standard List: Scanner*1, Cable *1, Receiver*1, Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:14Kg, N.W:11Kg
