| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-9200D |

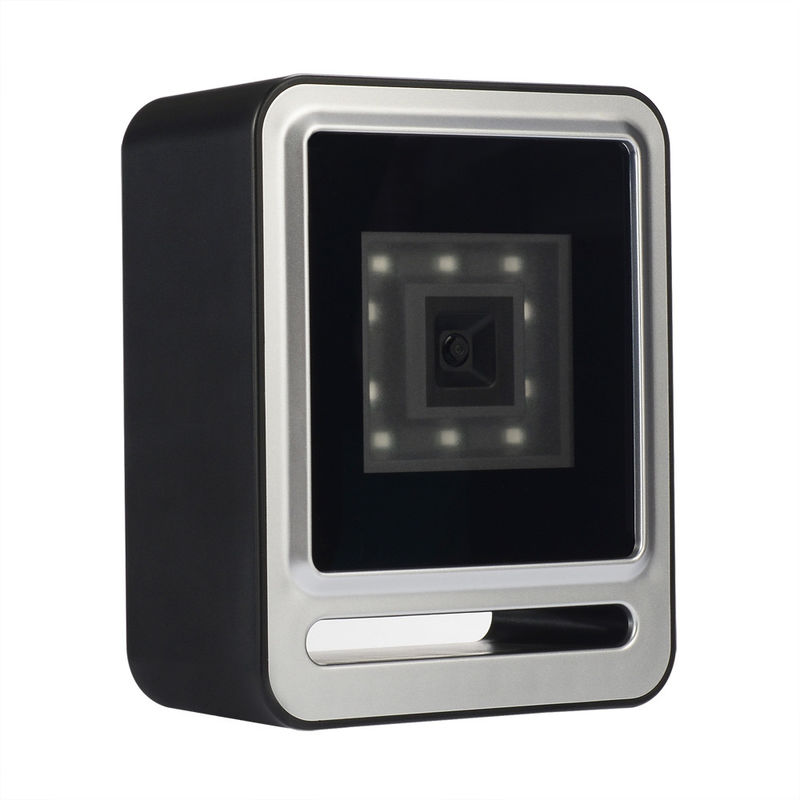

2D Omnidirectional Desktop Barcode Scanner Supermarket QR Code Reader YHD-9200D
Compared with a handheld barcode scanner, YHD-9200D has the weight of a handheld barcode scanner while release your hands. Most importantly, it can fit in the most space constrained areas, like the point of sale in a boutique,the ticket window at a train station and so on
Features
● Color: Black-Silver/ White-Blue
● Compatible System - Windows, Mac OS, POS Cash Register, Linux
● Desktop Hand-Free design free your hand and improve the working efficiency
● Plug and play, no need for any driver or software. Easy installation with USB cable
● Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily
● Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes
● Auto sense ,when the scanner reaches the barcode ,it will automatically decoding the barcode
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
Optical resolution : 640*480 ,120 fps
Lighting source : red LED supplement
Scanning speed : 2200 times/s
Scanning angle : rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees
Sweeping barcode type : paper, thin film medium one-dimensional; mobile phone, flat screen, etc.
Printing contrast : 20%
Resolution : 4mil
Error rate : ≤1/2,000,000
Interface type : USB:HID Keyboard(default mode), USB virtual serial port
Decoding Capability : 1D : Code 39,Full ASCII Code 39,Code 32,Code 128,Code 93,Code 11,Codabar/NW7,All UPC/EAN/JAN code (EAN-13,EAN-8,UPC-A,UPC-E,EAN-128),Interleave 2 of 5,STD 2of 5,Industrial 2 of 5, matrix 2 of 5,Chinese Postage Code,IATA,MSI/PLESSY,Italian Pharmacy Code,Industrial 2 of 5,BC-412, etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Depth of field : 13mil UPC (20-120mm),5mil Code128 (20-60mm),10mil Code128 (20-100mm),20mil QR (20-140mm)
Electric voltage : 5V DC
Working current : 390mA(Max.),220mA(Typical)
Optical safety certification : ICE42471,IEC60950
Electromagnetic compatibility : EN55022,EN55024
Size : 110mm*53mm*120mm
Cable length : 2m
Weight : 300g
Working temperature : -20℃～60℃
Storage temperature : -40℃～85℃
Working humidity : 5%～95%
Drop test : 1.5m
Packaging Details
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 185*120*86mm
Single Gross Weight: 0.45kg
