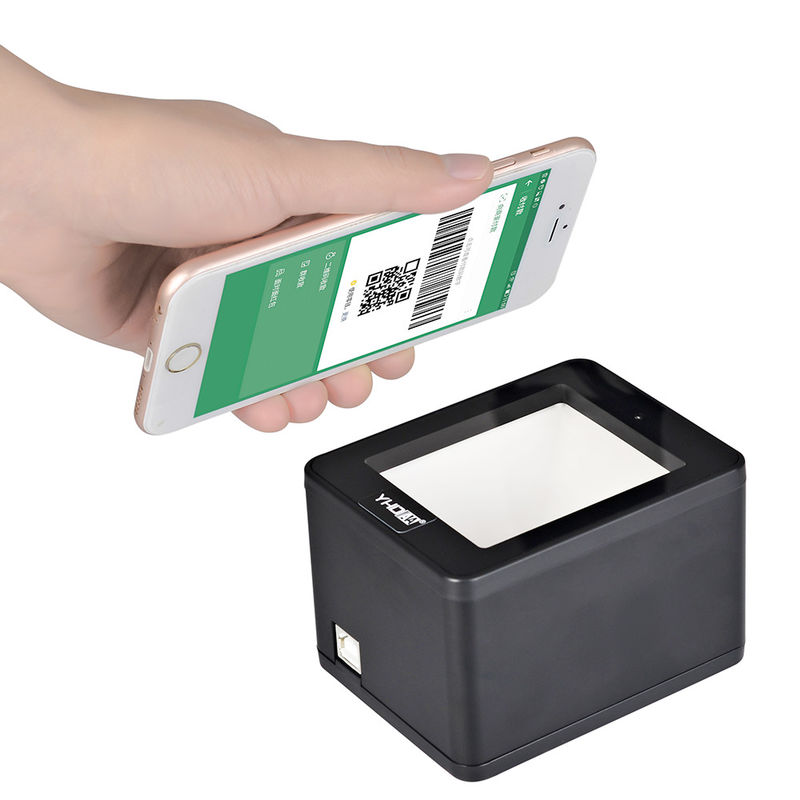

1D Qr Code Scanner Desktop Hands Free YHD-9800D Wired 2D Barcode Scanner

Desktop Barcode Scanner 1d 2d Hands Free Bar Code Reader Scanners YHD-9800D

Features

● CMOS image sensor.

● No driver, plug and play.

● Wide angle lens design, scans a large area.

● Effectively scans barcodes in sensitive lighting conditions, including through,glass/plastic, in bright sunlight, in dark environments, or on curved/reflective surfaces.

● Super scanning and decoding ability, can read incomplete and fuzzy codes.

● Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.

● Application fields: Electronic tickets/coupons, mobile marketing and office automation, kiosks,medical equipment,the series fixed mount barcode scanner is able to read barcodes from paper and mobile phones.

● Can be customized according to customer demand.

Technical parameters

Imaging Sensor : CMOS

Optical Source : 620nm Visible red light diode

Trigger Mode : Continuous,Auto-Induction

Indication : Buzzer & LED

Resolution Ratio : 640*480

Interface : RS232,USB

Decoding Speed : 500times/second

Resolution : 4mil

Size(Length x Width x Height) : 95*75*63 mm

Minimum Contrast : ≥ 25%

Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417,etc.

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),20-150mm PDF417(6.8MIL),15-250mm QR Code(20MIL)

Scan Angle Roll 55°, Pitch± 25°, Skew ±75°

Working Voltage : 5V

Current Max. : 212mA Working : 156mA～212mA Stand-by : 156mA

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Relative Humidity : 0 ~ 95%

Drop test : 1.5m fall to concrete

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanner*1, USB Cable *1, Manual *1, Box *1.

Single Package Size: 167*80*100mm

Single Gross Weight: 0.25kg

50pcs/CTN Carton Size: 535*420*350mm

50pcs/CTN Carton G.W.:13Kg, N.W:11Kg
