Desktop Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-9200D |

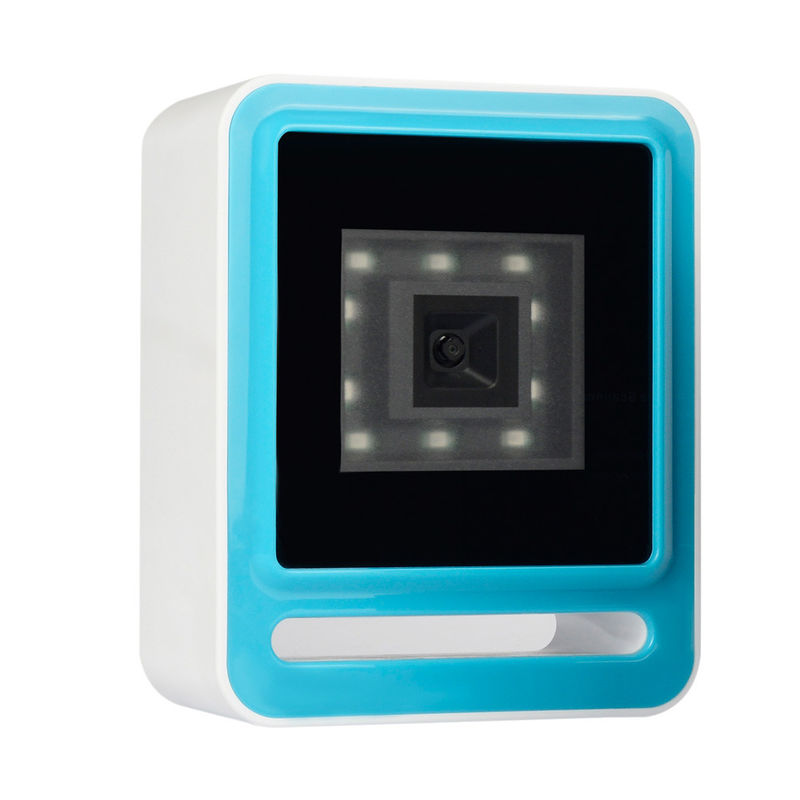

High Speed mnidirectional Barcode Scanner,2D QR Desktop Handsfree Automatic Platform Scanner with USB Cable
YHD-9200D Alacrity platform barcode scanner equipped infrared auto-sensing technology. Even the scanner still in sleeping mode, it will automatically be activated once the item moving, and read the barcode under the window to upload to your device.
Features
● YHD-9200D 2D Desktop Barcode Scanner
● Color: Black-Silver/ White-Blue
● Compatible System - Windows, Mac OS, POS Cash Register, Linux
● Plug and play, no need for any driver or software. Easy installation with USB cable
● Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily
● Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes
● Auto sense ,when the scanner reaches the barcode ,it will automatically decoding the barcode
Technical parameters
Optical resolution : 640*480 ,120 fps
Lighting source : red LED supplement
Scanning speed : 2200 times/s
Scanning angle : rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees
Sweeping barcode type : paper, thin film medium one-dimensional; mobile phone, flat screen, etc.
Printing contrast : 20%
Resolution : 4mil
Error rate : ≤1/2,000,000
Interface type : USB:HID Keyboard(default mode), USB virtual serial port
IP level : up to IP54 standard
Trigger Mode : Handheld,Continuous,Auto-Induction
Prompt mode : Buzzer, LED
Decoding Capability : 1D : Code 39,Full ASCII Code 39,Code 32,Code 128,Code 93,Code 11,Codabar/NW7,All UPC/EAN/JAN code (EAN-13,EAN-8,UPC-A,UPC-E,EAN-128),Interleave 2 of 5,STD 2of 5,Industrial 2 of 5, matrix 2 of 5,Chinese Postage Code,IATA,MSI/PLESSY,Italian Pharmacy Code,Industrial 2 of 5,BC-412, etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Depth of field : 13mil UPC (20-120mm),5mil Code128 (20-60mm),10mil Code128 (20-100mm),20mil QR (20-140mm)
Electric voltage : 5V DC
Working current : 390mA(Max.),220mA(Typical)
Optical safety certification : ICE42471,IEC60950
Electromagnetic compatibility : EN55022,EN55024
Size : 110mm*53mm*120mm
Cable length : 2m
Weight : 300g
Working temperature : -20℃～60℃
Storage temperature : -40℃～85℃
Working humidity : 5%～95%
Drop test : 1.5m
Packaging Details
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 185*120*86mm
Single Gross Weight: 0.45kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:15Kg, N.W:13.5Kg
