Desktop Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-9200D |

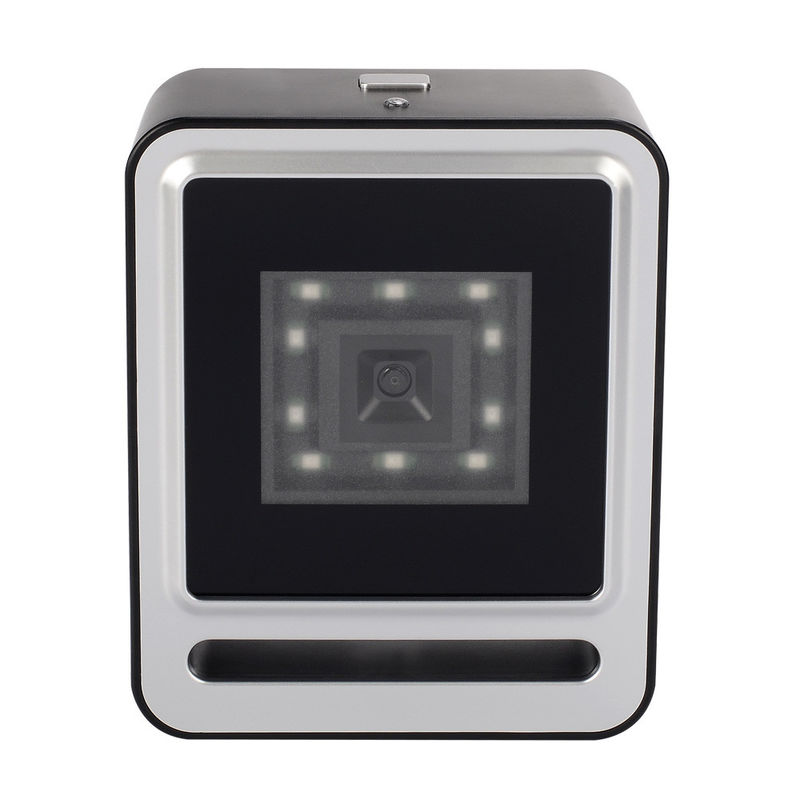

USB Desktop Barcode Scanner YHD-9200D,Handsfree Bar code Scanner 2D 1D Screen Scanning Platform Reader
Omnidirectional Barcode Scanner support screen scanning, easily capture 2D 1D codes on paper, mobile phone & computer screen. 1D: CEAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, ITF-14, ITF-6, Matrix 2 of 5, Interleaved 2 of 5, Industrial 2 of 5, GS1 Databar(RSS), Code 39, Code11, MSI-Plessey, etc. 2D: QR Code, Data Matrix, PDF417, Micro QR, etc.
Features
● YHD-9200D 2D Desktop Barcode Scanner
● Color: Black-Silver/ White-Blue
● Compatible System - Windows, Mac OS, POS Cash Register, Linux
● Desktop Hand-Free design free your hand and improve the working efficiency
● Plug and play, no need for any driver or software. Easy installation with USB cable
● Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily
● YHD-9200D Scanner can easily capture bar codes 1D, 2D on labels, paper, and mobile phone or computer displays,
Sensitive and accurately
● Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes
Technical parameters
Optical resolution : 640*480 ,120 fps
Lighting source : red LED supplement
Scanning speed : 2200 times/s
Scanning angle : rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees
Sweeping barcode type : paper, thin film medium one-dimensional; mobile phone, flat screen, etc.
Printing contrast : 20%
Resolution : 4mil
Error rate : ≤1/2,000,000
Interface type : USB:HID Keyboard(default mode), USB virtual serial port
IP level : up to IP54 standard
Trigger Mode : Handheld,Continuous,Auto-Induction
Prompt mode : Buzzer, LED
Decoding Capability : 1D : Code 39,Full ASCII Code 39,Code 32,Code 128,Code 93,Code 11,Codabar/NW7,All UPC/EAN/JAN code (EAN-13,EAN-8,UPC-A,UPC-E,EAN-128),Interleave 2 of 5,STD 2of 5,Industrial 2 of 5, matrix 2 of 5,Chinese Postage Code,IATA,MSI/PLESSY,Italian Pharmacy Code,Industrial 2 of 5,BC-412, etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Depth of field : 13mil UPC (20-120mm),5mil Code128 (20-60mm),10mil Code128 (20-100mm),20mil QR (20-140mm)
Electric voltage : 5V DC
Weight : 300g
Working temperature : -20℃～60℃
Storage temperature : -40℃～85℃
Working humidity : 5%～95%
Drop test : 1.5m
Packaging Details
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 185*120*86mm
Single Gross Weight: 0.45kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:15Kg, N.W:13.5Kg
