Bluetooth Barcode Scanner
>
|
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-5700LB |

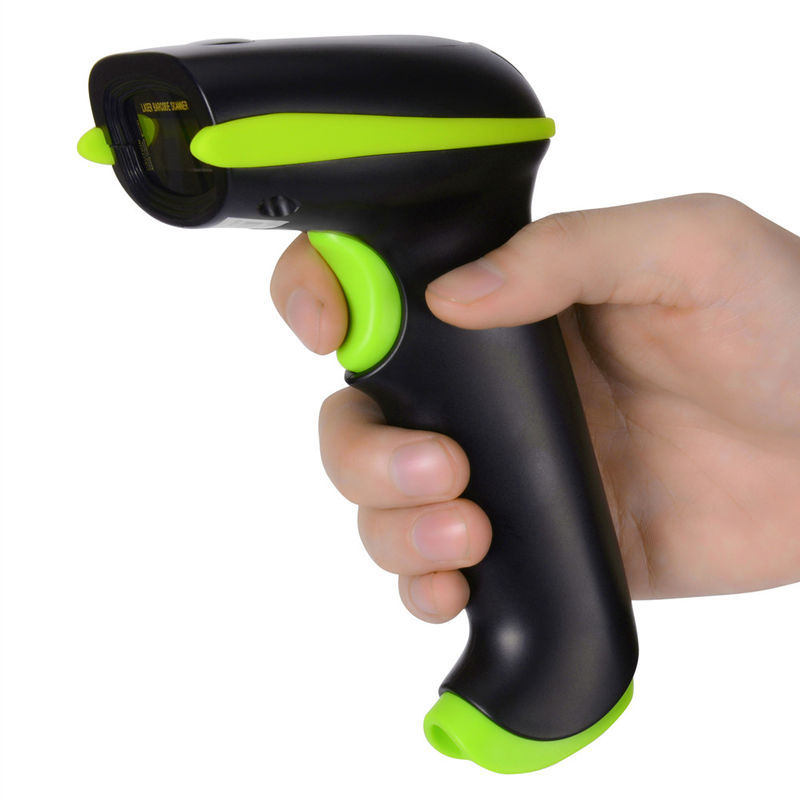

Bluetooth Handheld Barcode Scanner Android 1D Bar Code Reader YHD-5700LB
2600mAh battery super-long standby time. squeeze up to 30 hours of continuous scanning for your inventories or working hours, easily recharge in only 2 hours via the included USB charging cable,Bluetooth Barcode Scanner for iPhone iPad Android Tablet PC, Support Mac OS X, Android, Windows 10 and ipad IOS 9
Features
● Color : Yellow/ Black/ Green/Blue Optional.
● Support SPP and HID mode.
● Bluetooth/2.4G/Wired Mode, 3 modes for option.
● Service life of button reaches up to 8 million times.
● Support over sixteen different countries' keyboard layout.
● Support to put prefix or suffix before or after scanned data,turn on/ off buzzer, identity barcode type, add keyboard keys (TAB, CR&LF, etc.)
● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
Technical parameters
Transmission mode : Bluetooth/2.4G/Wired
Scanning type : bi-directional
Distance : 50m/100m/1.5m
CPU : ARM 32-bit Cortex
Storage : 100,000 barcodes
Battery: 3.7V-2600mAh
Trigger Mode : Button,Continuous
Light source : 650nm LD
Printing Contract : ≥25%
Indication : Buzzer & LED
Resolution : 3.3mil
Scanning width : 30cm
Decoding speed : 300scans/sec
Bit error rate : 1/20million
Button life : 8000,000 times
laser life : 12000 hours
Depth Of Field : 3.3mil 2mm-100mm,10mil 2mm-350mm,15.6mil 5mm-600mm,35mil 10mm-1000mm
Decoding Capability:
1D : UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,etc
Scanning angle : rotor angel±30°,inclination± 45°,declination ± 60°
Anti inference : industrial lighting or sun will not make any difference
Working current : 3.3Vx40mA Standby current :18uA-5mA
Working time : 7 to 10 days
Charging power:5V-400mA
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Drop test :2.0m
Packaging Details
Standard List: Scanner*1, USB Cable *1, Receiver*1, Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:14Kg, N.W.:11Kg
