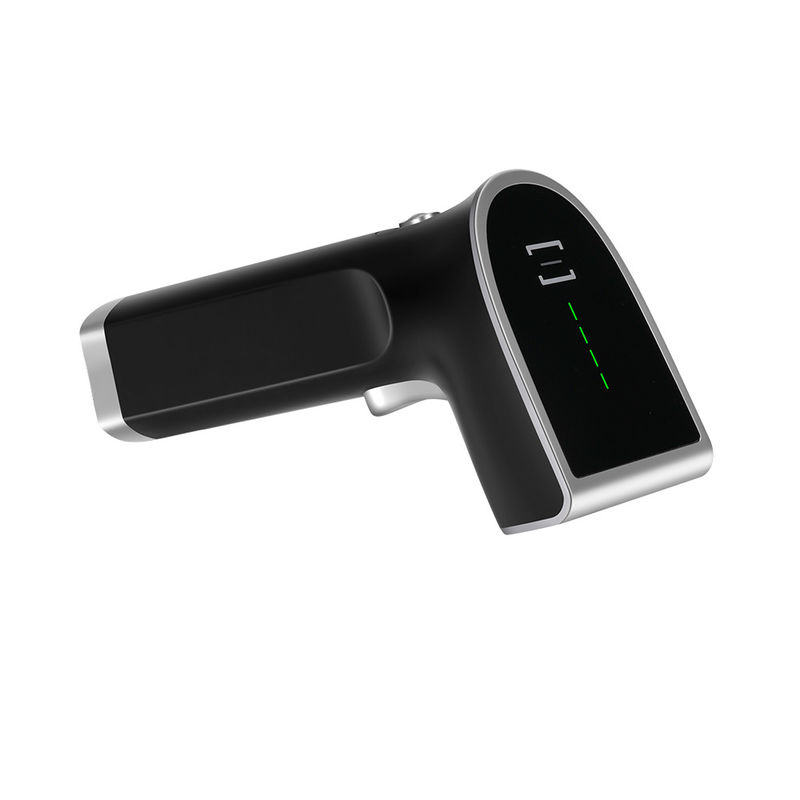

2D Wireless Bluetooth Barcode Scanner Qr Code Reader For Surpermarket
It features a 32-bit Cortex ARM CPU that offers excellent processing power, allowing for quick and accurate barcode scanning. It also includes 100,000 barcode storage capacity and 4 mil scanning resolution. In addition, it supports various interfaces such as USB and USB-COM, and can be operated via 2.4G Wireless or wired transmission mode. It is also capable of reading a wide variety of barcodes including 1D and 2D barcodes, making it perfect for a variety of applications. Furthermore, it is equipped with Bluetooth technology, making it easy to connect to other devices. With its high scanning accuracy and multiple barcode types, the Wireless Barcode Scanner is the ideal choice for any business that needs an efficient and reliable barcode reader.
1.Features
● Supports Bluetooth/2.4G/Wired wireless, 3modes for optional.
● Built-in 2600mAh battery, super-long standby time.
● Supports Handheld/Continuous/Auto-Induction , 3modes for optional.
● Support Multinational keyboard languages, Support SPP,HID,BLE mode.
● Equipped with CMOS technology,Global shutter exposure,easier to read 1D and 2D barcodes.
● Work with Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS.
● With the unique battery indicator light showing the remaining battery level, no more Low Battery Anxiety.
● Startup and Shutdown button humanized design,One-key power-on/off at any time.
● Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
● More customizations are available such as automatic sensing, hiding barcode character, add prefix or suffix and volume adjustment, add keyboard keys (TAB, CR&LF) etc.
● Can be customized according to customer demand.
| Product Specification:YHD-6700DB 2D Wireless Bluetooth Barcode Scanner | ||
| Scanner parameters: | ||
| Transmission mode: Bluetooth/2.4G/Wired | Storage:100,000 barcodes | |
| Distance:50m/100m/1.5m |
Sensor:640*480 CMOS Global shutter exposure |
|
|
CPU:ARM 32-bit Cortex |
Battery: 3.7V-2600mAh |
|
|
Indication:Buzzer & LED |
Light aimer: 617nm LED | |
|
Resolution :4mil |
Anti-inference:0-100000Lux Max | |
| Decoding speed:500scans/sec | Illumination: 6500K LEDs | |
| Button life :8000,000 times |
Interface:USB,USB-COM |
|
|
250Lux Depth of Field |
13mil-EAN13 | 50-250mm |
| 4mil-code39 | 60-100mm | |
| 20mil-QR | 40-300mm | |
| 10mil-PDF417 | 40-280mm | |
|
Decode Capability: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5, Coda bar,MSI Plessey,RSS,etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc. |
||
| Trigger Mode:Handheld,Continuous,Auto-Induction | ||
| Scanning angle:Angle of rotation360°,inclination± 65°,declination ± 60° | ||
| Working current:3.3Vx200mA | Standby current :18uA-5mA | |
| Working time :7 to 10 days | Charging power:5V-400mA | |
| Anti inference:0-100000Lux Max | Relative Humidity: 0 ~ 95% | |
| Certificate :CE,FCC,RoHS,IP54 | Drop test :2m | |
3.Packaging Details
Standard List: Scanner*1, Cable *1, USB Receiver*1, Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:14Kg, N.W.:11Kg
