Wireless Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-6800DW |

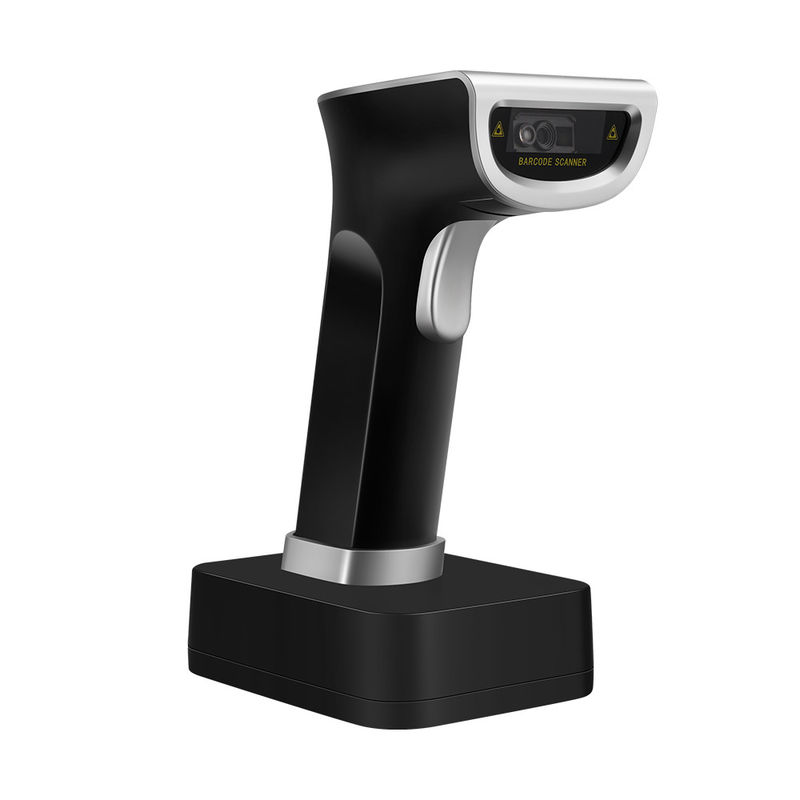

2D Wireless Barcode Scanner New Design Scanning Gun Storage 100000 Barcodes Scanners
The Wireless Barcode Scanner is an ideal choice for businesses looking for a reliable 2D barcode reader. It features a powerful Bluetooth barcode reader, providing the connectivity needed to streamline data collection and manage inventory. This combination of scanning resolution, scanning modes, storage capacity, transmission modes, and interfaces makes the Wireless Barcode Scanner an ideal choice for any business looking for an efficient and reliable data collection solution.
1.Features
● Supports Bluetooth/2.4G wireless, 2modes for option.
● Built-in 2600mAh battery, super-long standby time.
● Supports Handheld/Continuous/Auto-Induction , 3modes for option.
● Work with Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS.
● With the unique battery indicator light showing the remaining battery level, no more Low Battery Anxiety.
● Startup and Shutdown button humanized design,One-key power-on and power-off at any time.
● Recongnizable Digital/Printed 1D 2D QR Barcode,Even damaged, blurring, incomplete, fuzzy and reflective barcodes can be decoded easily.
● More customizations are available such as automatic sensing, hiding barcode character, add prefix or suffix and volume adjustment, add keyboard keys (TAB, CR&LF) etc.
| Product Specification: YHD-6800DB 2D Bluetooth Barcode Scanner with Base | ||
| Scanner parameters: | ||
| Transmission mode: Bluetooth/2.4G | Storage:100,000 barcodes | |
| Distance:50m/100m | CPU:ARM 32-bit Cortex | |
|
Sensor:640*480 CMOS Global shutter exposure |
Interface:USB,USB-COM | |
| Resolution :4mil | Light aimer: 617nm LED | |
|
Battery: 3.7V-2600mAh
|
Indication:Buzzer & LED | |
| Decoding speed:500scans/sec | Illumination: 6500K LEDs | |
| Button life :8000,000 times | Printing contract :≥25% | |
|
250Lux Depth of Field |
13mil-EAN13 | 50-250mm |
| 4mil-code39 | 60-100mm | |
| 20mil-QR | 40-300mm | |
| 10mil-PDF417 | 40-280mm | |
|
Decode Capability: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5, Coda bar,MSI Plessey,RSS,etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc. |
||
| Trigger Mode:Handheld,Continuous,Auto-Induction | ||
| Scanning angle:Angle of rotation360°,inclination± 65°,declination ± 60° | ||
| Working current:3.3Vx200mA | Standby current :18uA-5mA | |
| Working time :7 to 10 days | Charging power:5V-400mA | |
| Anti inference:0-100000Lux Max | Relative Humidity: 0 ~ 95% | |
| Certificate :CE,FCC,RoHS,IP54 | Drop test :2m | |
3.Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.5kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:16Kg, N.W:14Kg
