Wireless Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-6700LW |

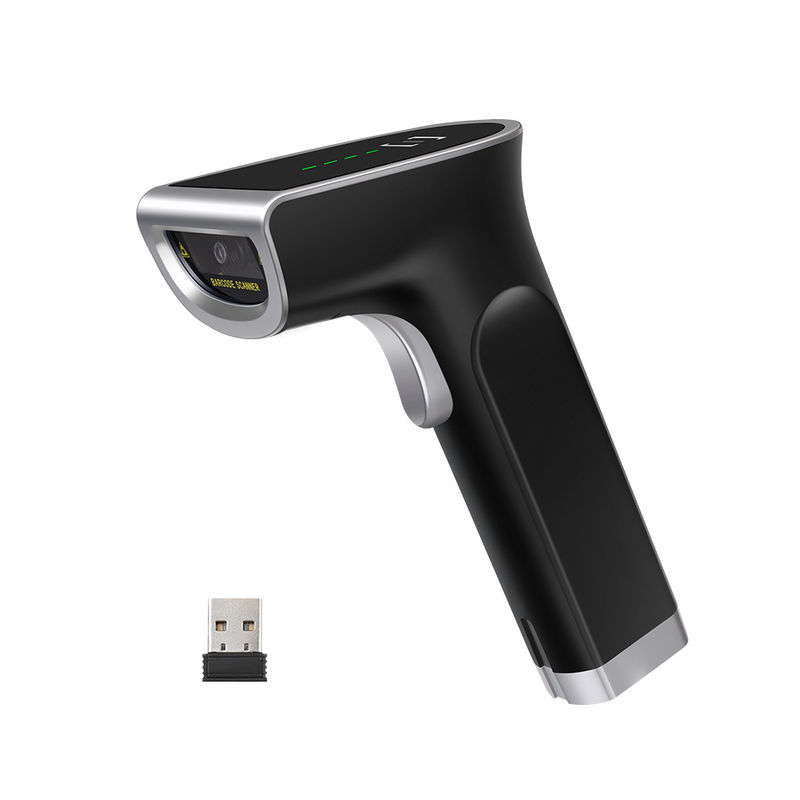

1d Laser Wireless Laser Barcode Scanner Long Distance Reader YHD-6700LW
The laser barcode scanner is suitable for a wide range of applications, including retail, inventory management, logistics, healthcare, and more. It can be used in various industries where accurate and efficient barcode scanning is essential.
1.Features
● Plug and play, read all the standard 1D bar codes.
● Supports Handheld/Continuous/Auto-Induction , 3modes for optional.
● Built-in 2600mAh large capacity battery, super-long standby time.
● Support Multinational keyboard languages, can be used in many countries.
● With the unique battery indicator light showing the remaining battery level, no more Low Battery Anxiety.
● Startup and Shutdown button humanized design,One-key power-on /off at any time.
● Up to 12,000 hours laser Life , French press key with life of 8 million pressing times .
● Adopts 2.4G wireless communication technology, 60m indoors and 100m in open space.
● Work with laptop, desktop, PC and POS, and compatible with Windows XP/7/8/10, Mac OS, Linux, Android system.
● Support custom settings, like add/hide prefix or suffix, hide characters from the front/back, add keyboard keys (TAB, CR, etc.), change the capital/lower case, etc.
| Product Specification: YHD-6700LW 1D Wireless Laser Barcode Scanner | ||
| Scanner parameters: | ||
| Transmission mode:2.4G Wireless/Wired | Scanning type :bi-directional | |
| Distance:100m/1.5m | CPU:ARM 32-bit Cortex | |
| Storage:100000 barcodes |
Battery: 3.7V-2600mAh
|
|
| Trigger Mode:Button,Continuous | Light source:650nm LD | |
| Printing Contract :≥25% | Indication:Buzzer & LED | |
| Resolution :3.3mil | Scanning width :30cm | |
| Decoding speed:300scans/sec | Bit error rate :1/20million | |
| Button life :8000,000 times | Laser life:12000 hours | |
|
Depth Of Field |
3.3mil | 2mm-100mm |
| 10mil | 2mm-350mm | |
| 15.6mil | 5mm-600mm | |
| 35mil | 10mm-1000mm | |
|
Decoding Capability: 1D:UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,etc |
||
| Scanning angle:rotor angel±30°,inclination± 45°,declination ± 60° | ||
| Anti inference:industrial lighting or sun will not make any difference | ||
| Working current:3.3Vx40mA | Standby current :18uA-5mA | |
| Working time :7 to 10 days | Charging power:5V-400mA | |
| Certificate :CE,FCC,RoHS,IP54 | Drop test :2.0m | |
3. Packaging Details
Standard List: Scanner*1, USB Cable *1, Receiver*1, Manual *1, Box *1
Single Package Size: 167*80*100mm
Single Gross Weight: 0.28kg
50pcs/CTN Carton Size: 535*420*350mm
50pcs/CTN Carton G.W.:14Kg, N.W:12Kg
