| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-6800DB |

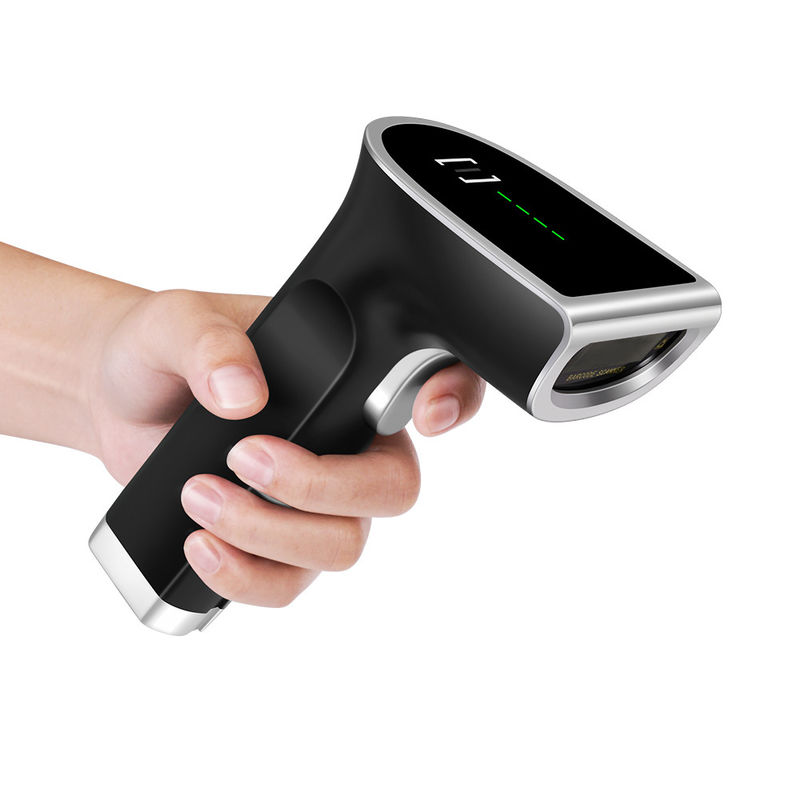

2D Omnidirectional Bluetooth Barcode Scanner Qrcode Wholesale Bar Code Reader YHD-6800DB
YHD-6800DB Bluetooth Barcode Scanner is a device designed to quickly and accurately scan barcodes, making it ideal for a variety of applications. This scanner is equipped with a 617nm LED light source, allowing it to read both 1D and 2D barcodes. It is powered by a lithium-ion battery, and its illumination is provided by 6500K LEDs. Thanks to its reliable storage temperature range of -20-60°C, the scanner is suitable for use in a wide range of environments. With its impressive scanning capabilities and robust design, the Bluetooth Barcode Scanner is a great choice for convenient and reliable barcode scanning.
1.Features
● Supports Bluetooth/2.4G wireless, 2modes for option.
● Built-in 2600mAh battery, super-long standby time.
● Supports Handheld/Continuous/Auto-Induction , 3modes for option.
● Support Multinational keyboard languages, can be used in many countries.
● Support SPP,HID,BLE mode. Base supports data transmission and battery charging.
● Equipped with CMOS technology,Global shutter exposure,easier to read barcodes.
● Work with Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS.
● With the unique battery indicator light showing the remaining battery level, no more Low Battery Anxiety.
● Startup and Shutdown button humanized design,One-key power-on and power-off at any time.
● Recongnizable Digital/Printed 1D 2D QR Barcode,Even damaged, blurring, incomplete, fuzzy and reflective barcodes can be decoded easily.
● More customizations are available such as automatic sensing, hiding barcode character, add prefix or suffix and volume adjustment, add keyboard keys (TAB, CR&LF) etc.
| Product Specification: YHD-6800DB 2D Bluetooth Barcode Scanner with Base | ||
| Scanner parameters: | ||
| Transmission mode: Bluetooth/2.4G | Storage:100,000 barcodes | |
| Distance:50m/100m | CPU:ARM 32-bit Cortex | |
|
Sensor:640*480 CMOS Global shutter exposure |
Interface:USB,USB-COM | |
| Resolution :4mil | Light aimer: 617nm LED | |
|
Battery: 3.7V-2600mAh
|
Indication:Buzzer & LED | |
| Decoding speed:500scans/sec | Illumination: 6500K LEDs | |
| Button life :8000,000 times | Printing contract :≥25% | |
|
250Lux Depth of Field |
13mil-EAN13 | 50-250mm |
| 4mil-code39 | 60-100mm | |
| 20mil-QR | 40-300mm | |
| 10mil-PDF417 | 40-280mm | |
|
Decode Capability: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5, Coda bar,MSI Plessey,RSS,etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc. |
||
| Trigger Mode:Handheld,Continuous,Auto-Induction | ||
| Scanning angle:Angle of rotation360°,inclination± 65°,declination ± 60° | ||
| Working current:3.3Vx200mA | Standby current :18uA-5mA | |
| Working time :7 to 10 days | Charging power:5V-400mA | |
| Anti inference:0-100000Lux Max | Relative Humidity: 0 ~ 95% | |
| Certificate :CE,FCC,RoHS,IP54 | Drop test :2m | |
3.Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.5kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:16Kg, N.W:14Kg
