Bluetooth Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-6800DB |

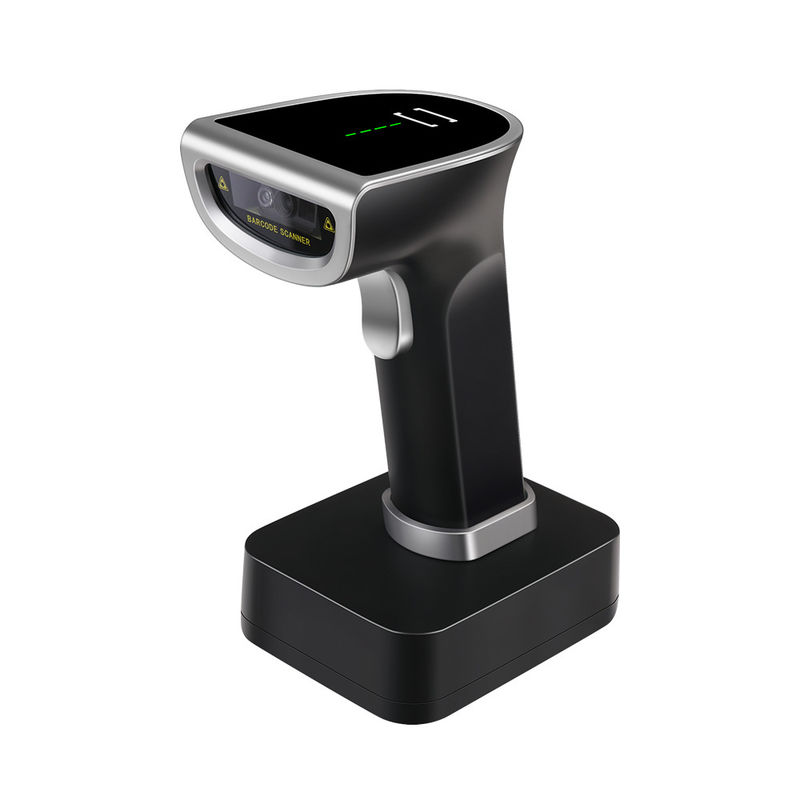

1D 2D Barcode Scanner Bluetooth & 2.4G Wireless Omni Directional Scanning Machine For Supermarket Warehouse
The YHD-6800DW Bluetooth Barcode Scanner is a high-performance barcode reader, designed to meet the demands of a wide range of applications. It supports USB interface and USB-COM interface, and can easily read barcodes up to 4mil resolution. It is equipped with Bluetooth and 2.4G transmission mode, providing users with a reliable and stable connection. It is made of ABS+PC material which is durable and anti-collision. It is suitable for various scenarios, such as retail, logistics, and warehousing. It is an ideal choice of barcode scanner for users who are looking for fast, accurate and reliable barcode reader.
1.Features
● Supports Bluetooth/2.4G wireless, 2modes for option.
● Built-in 2600mAh battery, super-long standby time.
● Supports Handheld/Continuous/Auto-Induction , 3modes for option.
● Work with Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS.
● With the unique battery indicator light showing the remaining battery level, no more Low Battery Anxiety.
● Startup and Shutdown button humanized design,One-key power-on and power-off at any time.
● Recongnizable Digital/Printed 1D 2D QR Barcode,Even damaged, blurring, incomplete, fuzzy and reflective barcodes can be decoded easily.
● More customizations are available such as automatic sensing, hiding barcode character, add prefix or suffix and volume adjustment, add keyboard keys (TAB, CR&LF) etc.
| Product Specification: YHD-6800DB 2D Bluetooth Barcode Scanner with Base | ||
| Scanner parameters: | ||
| Transmission mode: Bluetooth/2.4G | Storage:100,000 barcodes | |
| Distance:50m/100m | CPU:ARM 32-bit Cortex | |
|
Sensor:640*480 CMOS Global shutter exposure |
Interface:USB,USB-COM | |
| Resolution :4mil | Light aimer: 617nm LED | |
|
Battery: 3.7V-2600mAh
|
Indication:Buzzer & LED | |
| Decoding speed:500scans/sec | Illumination: 6500K LEDs | |
| Button life :8000,000 times | Printing contract :≥25% | |
|
250Lux Depth of Field |
13mil-EAN13 | 50-250mm |
| 4mil-code39 | 60-100mm | |
| 20mil-QR | 40-300mm | |
| 10mil-PDF417 | 40-280mm | |
|
Decode Capability: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5, Coda bar,MSI Plessey,RSS,etc. 2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc. |
||
| Trigger Mode:Handheld,Continuous,Auto-Induction | ||
| Scanning angle:Angle of rotation360°,inclination± 65°,declination ± 60° | ||
| Working current:3.3Vx200mA | Standby current :18uA-5mA | |
| Working time :7 to 10 days | Charging power:5V-400mA | |
| Anti inference:0-100000Lux Max | Relative Humidity: 0 ~ 95% | |
| Certificate :CE,FCC,RoHS,IP54 | Drop test :2m | |
3.Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1,Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.5kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:16Kg, N.W:14Kg
