Desktop Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-9100D |

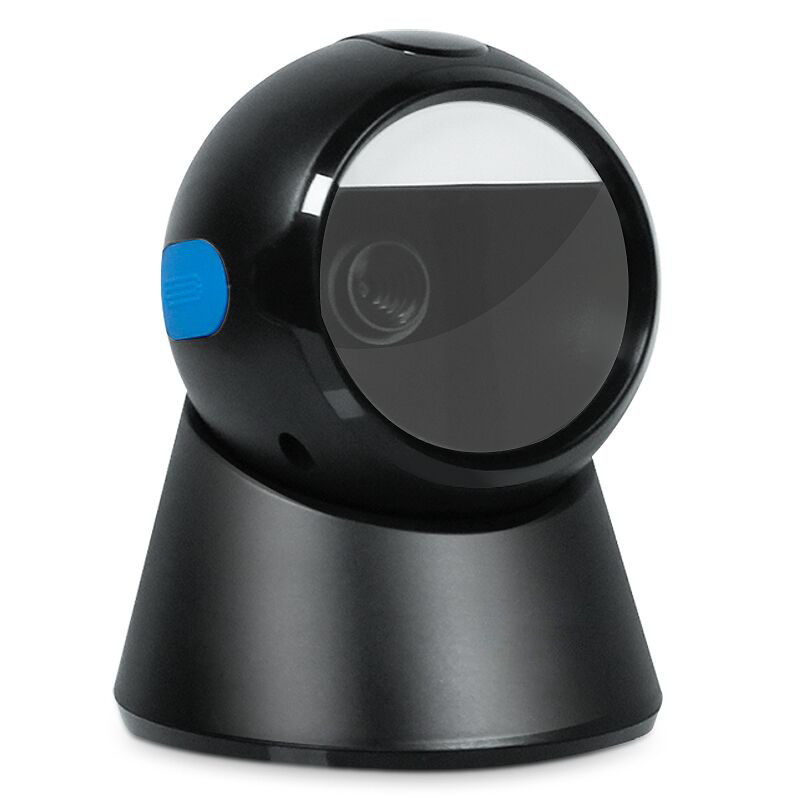

Desktop Barcode Scanner 1D 2D QR Supermarket Omnidirectional Barcode reader YHD-9100D
YHD-9100D provides 360° omnidirectional scanning, such an excellent layout of omnidirectional camera lens ensures reliable scan of barcodes at most angle. It frees you from the need to constantly adjust angles and distances, makes it much easier to a successful scan.
Features
● Desktop mounted, easy to use.
● 32Bit CPU, Super decoding ability, support multiple languages.
● Wired scanning platform free your hand and improve the working efficiency.
● 1D/2D/QR Barcode Reader Scanner, can scan barcodes such as damaged and dense
● Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily.
● Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.
● Desktop Hand-Free Design, auto sense ,when the scanner reaches the barcode ,it will
automatically decoding the barcode.
●Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical parameters
Optical resolution : 640*480
Lighting source : red LED supplement
Scanning speed : 2200 times/s
Scanning angle : rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees
Sweeping barcode type paper, thin film medium one-dimensional; mobile phone, flat screen, etc.
Printing contrast : 20%
Error rate : ≤1/2,000,000
Interface type : USB:HID Keyboard(default mode), USB virtual serial port
IP level : up to IP5X standard
Prompt mode : buzzer sound prompt and green light prompt
Decoding Capability 1D : Code 39,Full ASCII Code 39,Code 32,Code 128,Code 93,Code 11,Codabar/NW7,All UPC/EAN/JAN code (EAN-13,EAN-8,UPC-A,UPC-E, EAN-128),Interleave 2 of 5,STD 2of 5,Industrial 2 of 5,matrix 2 of 5,Chinese Postage Code,IATA,MSI/PLESSY,Italian Pharmacy Code,Industrial 2 of 5,BC-412, etc.
2D:QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Electric voltage : 5V DC
Working current : 390mA(Max.),220mA(Typical)
Optical safety certification : ICE42471,IEC60950
Electromagnetic compatibility : EN55022,EN55024
Size : 110mm*150mm*110mm
Cable length : 2m
Weight : 450g
Working temperature : -20℃～60℃
Storage temperature : -20℃～70℃
Working humidity : 0%～80%
Drop test : 2m
Packaging Details
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 185*125*130mm
Single Gross Weight: 0.53kg
30pcs/CTN Carton Size: 390*390*675mm
30pcs/CTN Carton G.W.:17Kg, N.W:15Kg
