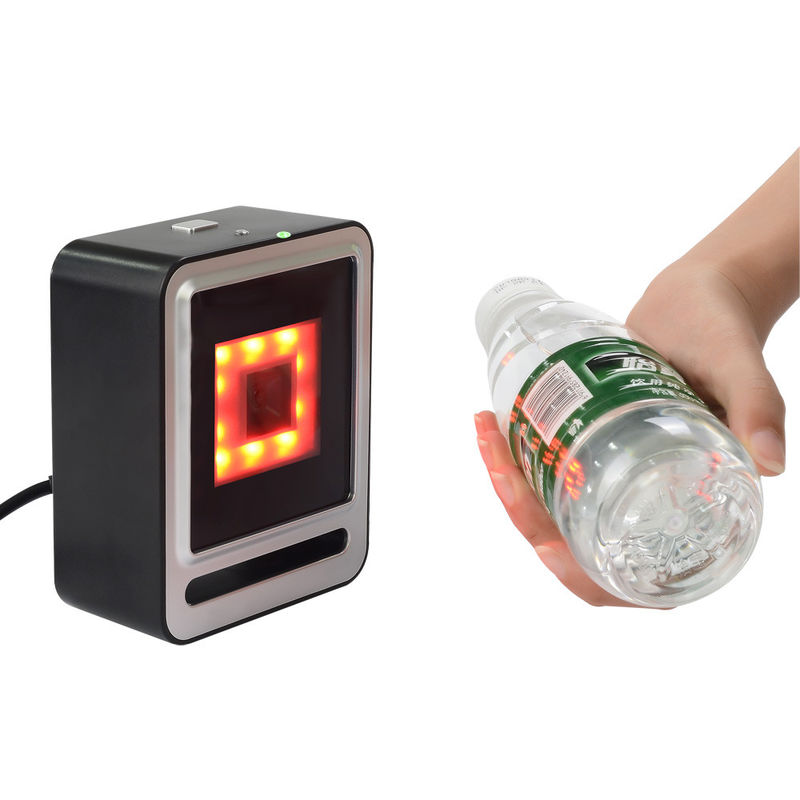

2D Desktop Omnidirectional Barcode Scanner COMS Usb Bar code Reader YHD-9200D
Features
● Color: Black-Silver/ White-Blue
● Compatible Operating System for Windows, Mac OS, POS Cash Register, Linux.
● Desktop Hand-Free design free your hand and improve the working efficiency
● USB wired connection, no tedious setting required, plug and play.
● Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily
● Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes
● Auto sense ,when the scanner reaches the barcode ,it will automatically decoding the barcode
● Support Trigger Mode/Continue Scan Mode/Auto Sense Mode.
● Widely used in supermarket, retails stores, clothing store, library and other fields.
Technical parameters
Optical resolution : 640*480 ,120 fps
Lighting source : red LED supplement
Scanning speed : 2200 times/s
Scanning angle : rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees
Sweeping barcode type : paper, thin film medium one-dimensional; mobile phone, flat screen, etc.
Printing contrast : 20%
Resolution : 4mil
IP level : up to IP54 standard
Trigger Mode : Handheld,Continuous,Auto-Induction
Prompt mode : Buzzer, LED
Decoding Capability : 1D : Code 39,Full ASCII Code 39,Code 32,Code 128,Code 93,Code 11,Codabar/NW7,All UPC/EAN/JAN code (EAN-13,EAN-8,UPC-A,UPC-E,EAN-128),Interleave 2 of 5,STD 2of 5,Industrial 2 of 5, matrix 2 of 5,Chinese Postage Code,IATA,MSI/PLESSY,Italian Pharmacy Code,Industrial 2 of 5,BC-412, etc.
2D : QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.
Electric voltage : 5V DC
Cable length : 2m
Weight : 300g
Working temperature : -20℃～60℃
Storage temperature : -40℃～85℃
Working humidity : 5%～95%
Drop test : 1.5m
Packaging Details
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 185*120*86mm
Single Gross Weight: 0.45kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:15Kg, N.W:13.5Kg
