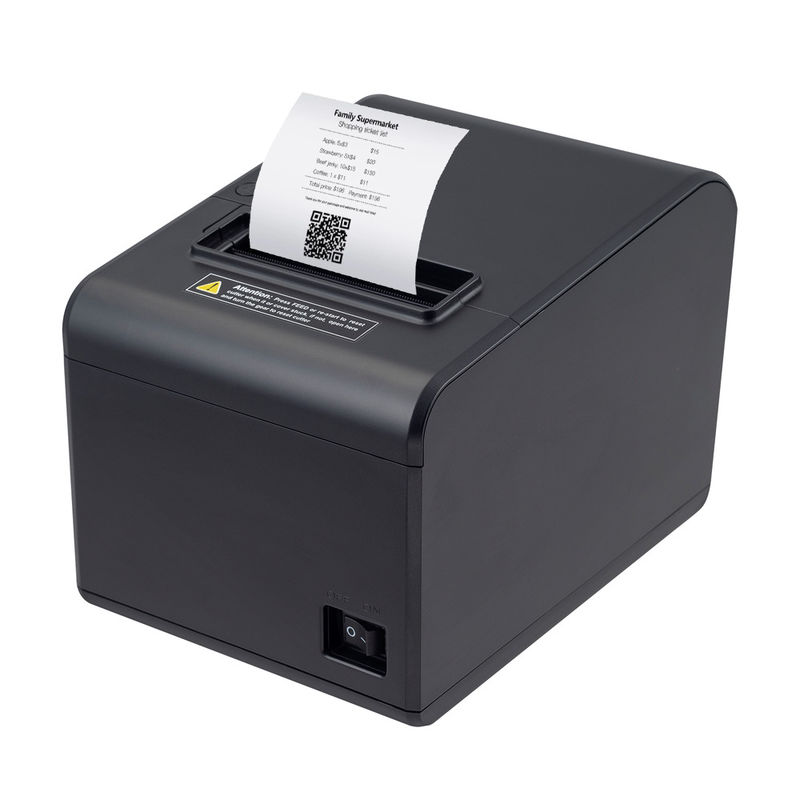

YHDAA POS 80mm Thermal Printer USB LAN Bluetooth Wifi Interfaces

YHDAA 80 mm Thermal Printer USB LAN Bluetooth Wifi interface POS Receipt Pinter

The YHD-8320 pos printer high efficiency with auto cutter and the fastest printing speed--260mm/sec. Easy for paper installation, Easy maintenance, and excellent structure.Plug and play USB PORT, easy to use.Three Interface ports:USB+ LAN + SERIAL PORT.DO NOT-Wifi-Bluetooth.Support WIN2003/WINXP/WIN7/WIN8/WIN10/LINUX/Mac

Features

● Support multi languages.

● Cash drawer drive supported.

● Compatible with ESC/POS print instruction set.

● Optional interface: USB/ USB+Lan/ USB+BT,etc.

● Support LED indicator light and prompt buzzer function.

● Excellent waterproof, anti-oil, anti-dust structure design.

● Support download and print logo & graphics. Support 1D,2D bar code printing.

● No ink cartridge or ribbon required, low operation cost, thermal paper is easy to buy.

● Characters can be amplified,printed in bold optionally,and line spacing printing can be adjusted.

● Can be widely used in manufacturing & warehouse logistic industry, healthcare, parcel post, office & studio, retail & etc.

Technical parameters

Interfaces : USB/ USB+Lan/ USB+BT,etc

Print Comand : ESC/POS

Print Method : Thermal Line Printing

Print Speed : 260mm/sec

No. of Total Dots : 576 dots/line

Auto Paper Cutter : Full or Partial cut

Print Width : 80mm

Character size : ANK Font A: 12 x 24 dots; Font B: 9 x 17 dots

Simplified/Traditional Chinese: 24 x 24 dots

NV Flash : 256K bytes

Code : 1D and 2D code

Compatible OS : Window Systems ; Linux, Android & IOS Operate Systems

Paper & Electrical

Type : Roll Paper

Width : 79.5±0.5mm

Line spacing : 3.75mm(Adjustable by commands)

Roll Diameter : 83mm

Paper Thickness : 0.06-0.08mm

Power adaptor : AC:100-240V, 50-60Hz

Power source : Output DC24V/2.5A

Cash Drawer Control : 12V/1A

Cutter life : 1.5 million cuts

Print Head : Reliability

Print Reliability : 150km

Temperature: -10℃to 45 ℃(work): -20 ℃to 60 ℃(storage)

Humidity Working : 10%-80%

Warantty : 12 months at least

Packaging Details

Standard List: Printer*1, USB Cable *1, Power Cable and Plug *1, Manual and CD*1, Test paper*1, Paper roller supporter*1,Box *1.

Single Package Size: 285*180*170mm

Single Gross Weight: 1.65KG

12pcs/CTN Carton Size: 59*39*53cm Carton G.W.:22.5KG
