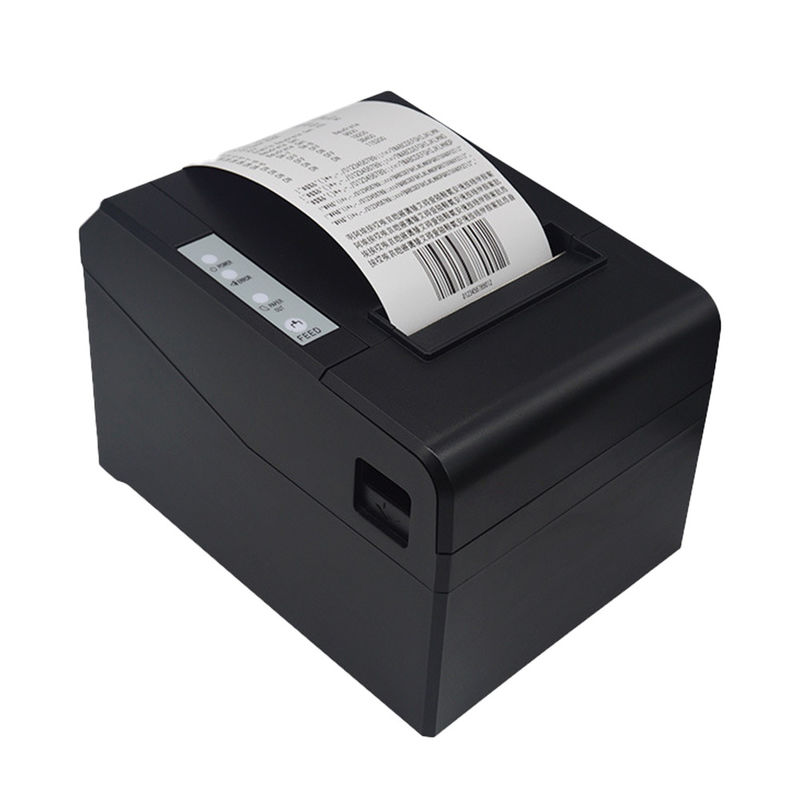

260mm/sec Direct 80mm Thermal Printer With USB Serial Ethernet Bluetooth

YHDAA Receipt Printer 80mm, Direct Thermal Printer with USB Serial Ethernet, Bluetooth

Features

● Support multi languages.

● Cash drawer drive supported.

● User-friendly Design.

● Low-power waste, low-run cost.

● Low cost and high-quality thermal printing.

● Support different density bitmap graphics printing.

● High-speed printing using embedded soft font for all interfaces.

● Easy paper-roll installation, Easy maintenance and Rational structure.

● Optional interface: USB/ USB+Lan/ USB+RS232/ USB+RS232+Lan/ USB+Bluetooth/ USB+WIFI.

● Characters can be amplified,printed in bold optionally,and line spacing printing can be adjusted.

● Compatible with ESC/POS print instruction set, optional columns and font(adjusted by DIP switch).

● Can be widely used in manufacturing & warehouse logistic industry, healthcare, parcel post, office & studio, retail & etc.

Technical parameters

Interfaces : USB/ USB+Lan/ USB+RS232/ USB+RS232+Lan/ USB+Bluetooth/ USB+WIFI(Optional)

Print Comand : ESC/POS

Print Method : Thermal Line Printing

Print Speed : 260mm/sec

No. of Total Dots : 576dot/line or 512dot/line ANK Character

Auto Paper Cutter : Full or Partial cut

Print Width : 72±0.5mm

Character Set : Alphanumeric /Chinese Kanji

Print Font : 12 x 24; 24x 24; 9*17; 9*24

NV Flash : 256K bytes

Compatible OS : Window Systems ; Android & IOS Operate Systems

Type : Roll Paper

Width : 79.5±0.5mm

Roll Diameter : 83mm

Paper Thickness : 0.06-0.08mm

Adapter Voltage : DC24V/2.5A

Cash Drawer Control : 12V/1A

Print Head : Reliability

Print Reliability : 100km

Dimension : 18.6*14.5*13.6cm

Unit Weight : 2.5KG(with accessories)

Pieces Per CTN : 8 Pieces

Color : Black

CTN Dimension : 48 x 46 x 36cm

Carton Weight : 17KG

Temperature Working : 0 to 45 Degrees

Humidity Working : 10%-80%

Warantty : 12 months at least

Packaging Details

Standard List: Printer*1, USB Cable *1, Power Cable and Plug *1, Manual and CD*1, Test paper*1, Box *1.

Single Package Size: 230*245*175mm

Single Gross Weight: 1.86KG

8pcs/CTN Carton Size: 49*51*38cm Carton G.W.:17KG
