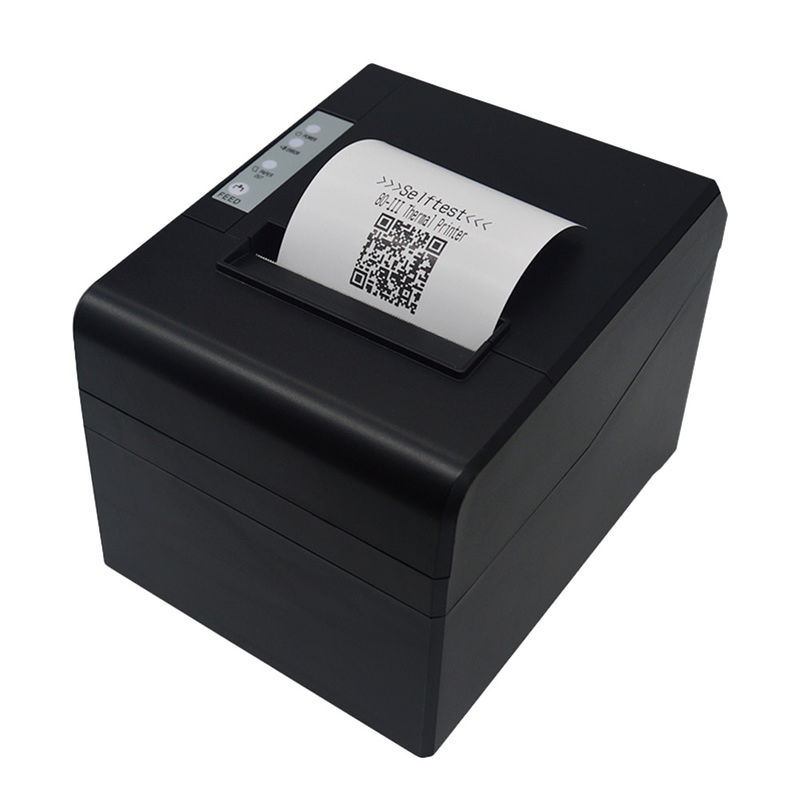

Black 80mm POS Printer 260mm/Sec USB Thermal Receipt Printer

POS Printer, 80mm USB Thermal Receipt Printer, Support Windows/Mac/Linux Cash Drawer YHD-8330

YHD-8330 Support cash drawer driving, compatible ESC/POS print commands.Do not need ribbon/ink cartridge, low operating cost. The printer has the function of overheating protection, long service life. Printing characters with high speed, reliable performance.It is an ideal choice for receipt printing in large shopping malls, manufacturing & warehouse logistic industry,supermarkets, retail, healthcare, parcel post, office & studio,hotels, canteens, restaurants, etc.

Features

● Support multi languages.

● User-friendly Design.

● Low-power waste, low-run cost.

● Low cost and high-quality thermal printing.

● Support different density bitmap graphics printing.

● High-speed printing using embedded soft font for all interfaces.

● Easy paper-roll installation, Easy maintenance and Rational structure.

● Optional interface: USB/ USB+Lan/ USB+RS232/ USB+RS232+Lan/ USB+Bluetooth/ USB+WIFI.

● Characters can be amplified,printed in bold optionally,and line spacing printing can be adjusted.

● Compatible with ESC/POS print instruction set, optional columns and font(adjusted by DIP switch).

Technical parameters

Interfaces : USB/ USB+Lan/ USB+RS232/ USB+RS232+Lan/ USB+Bluetooth/ USB+WIFI(Optional)

Print Comand : ESC/POS

Print Method : Thermal Line Printing

Print Speed : 260mm/sec

No. of Total Dots : 576dot/line or 512dot/line ANK Character

Auto Paper Cutter : Full or Partial cut

Print Width : 72±0.5mm

Character Set : Alphanumeric /Chinese Kanji

Print Font : 12 x 24; 24x 24; 9*17; 9*24

NV Flash : 256K bytes

Compatible OS : Window Systems ; Android & IOS Operate Systems

Type : Roll Paper

Width : 79.5±0.5mm

Roll Diameter : 83mm

Paper Thickness : 0.06-0.08mm

Adapter Voltage : DC24V/2.5A

Cash Drawer Control : 12V/1A

Print Head : Reliability

Print Reliability : 100km

Dimension : 18.6*14.5*13.6cm

Unit Weight : 2.5KG(with accessories)

Pieces Per CTN : 8 Pieces

Color : Black

CTN Dimension : 48 x 46 x 36cm

Carton Weight : 17KG

Temperature Working : 0 to 45 Degrees

Humidity Working : 10%-80%

Warantty : 12 months at least

Packaging Details

Standard List: Printer*1, USB Cable *1, Power Cable and Plug *1, Manual and CD*1, Test paper*1, Box *1.

Single Package Size: 230*245*175mm

Single Gross Weight: 1.86KG

8pcs/CTN Carton Size: 49*51*38cm Carton G.W.:17KG
