80mm Thermal Printer
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-80E |

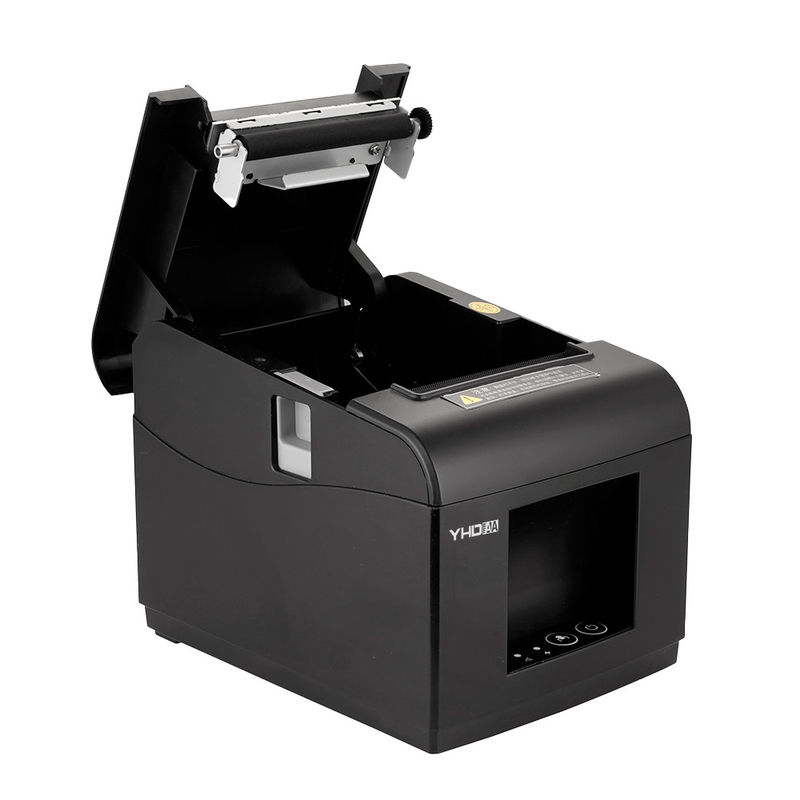

Desktop Receipt Thermal Printer 80mm For Pos System Printing Thermal Paper Printers YHD-80E
Introducing the 80mm Thermal Printer, an advanced receipt thermal printer with a maximum printing width of 80mm and a printing speed of up to 230mm/s. It supports Bluetooth technology and is compatible with Windows, Linux, Android, and iOS operating systems. With a 203dpi printing resolution, this 80mm receipt thermal printer offers crisp and clear prints with sharp details and vibrant colors. It is ideal for a wide range of applications including printing receipts, tickets, barcodes, labels, and more. The 80mm Thermal Printer is a reliable and user-friendly solution that offers exceptional convenience and performance
1. Features
● Support multi languages.
● Cash drawer drive supported.
● Compatible with ESC/POS print instruction set.
● Support IAP online upgrade and black mark upgrade.
● Optional interface: USB/ USB+Lan/ USB+BT/USB+WIFI,etc.
● Support LED indicator light and prompt buzzer function.
● Support download and print logo & graphics. Support 1D,2D bar code printing.
● Characters can be amplified,printed in bold optionally,and line spacing printing can be adjusted.
● Can be widely used in manufacturing & warehouse logistic industry, healthcare, parcel post, office & studio, retail & etc.
2. Technical parameters
| Product Specification: YHD-80E 80MM Thermal Receipt Printer | |
| Interfaces: | USB/ USB+Lan/ USB+BT/USB+WIFI/USB+RS232,etc |
| Print Comand: | ESC/POS |
| Print Method: | Thermal Line Printing |
| Print Speed: | 230mm/sec; 260mm/sec |
| No. of Total Dots: | 576 dots/line |
| Auto Paper Cutter: | Full or Partial cut |
| Print Width: | 80mm |
| Character size: |
ANK Font A: 12 x 24 dots; Font B: 9 x 17 dots Simplified/Traditional Chinese: 24 x 24 dots |
| NV Flash: | 256K bytes |
| Code: |
1D:UPC-1/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 2D: QR CODE/PDF417 |
| Compatible OS: | Window Systems ; Linux, Android & IOS Operate Systems |
| Paper & Electrical | |
| Type: | Roll Paper |
| Width: | 79.5±0.5mm |
| Line spacing: | 3.75mm(Adjustable by commands) |
| Roll Diameter: | 83mm |
| Paper Thickness: | 0.06-0.08mm |
| Power adaptor: | Input: AC:100-240V, 50-60Hz Output:DC 24V/2.5A |
| Cash Drawer Control: | 12V/1A |
| Cutter life: | 1.5 million cuts |
| Print Head: | Reliability |
| Print Reliability: | 150km |
| Physical &Environmental | |
| Temperature: | -10℃to 45 ℃(work): -20 ℃to 60 ℃(storage) |
| Humidity Working | 10%-90% |
| Warantty : | 12 months at least |
| Weight: | 0.85 Kg |
| Dimensions | 177*133.5*137.2mm(D*W*H) |
3. Packaging Details
* Standard List: Printer*1, USB Cable *1, Power Cable and Plug *1, Manual and CD*1, Test paper*1, Paper roller supporter*1,Box *1.
* Single Package Size: 220*195*150mm
* Single Gross Weight: 1.65KG
* 12pcs/CTN Carton Size: 62*46*33cm Carton G.W.:22KG
