80mm Thermal Printer
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-80A |

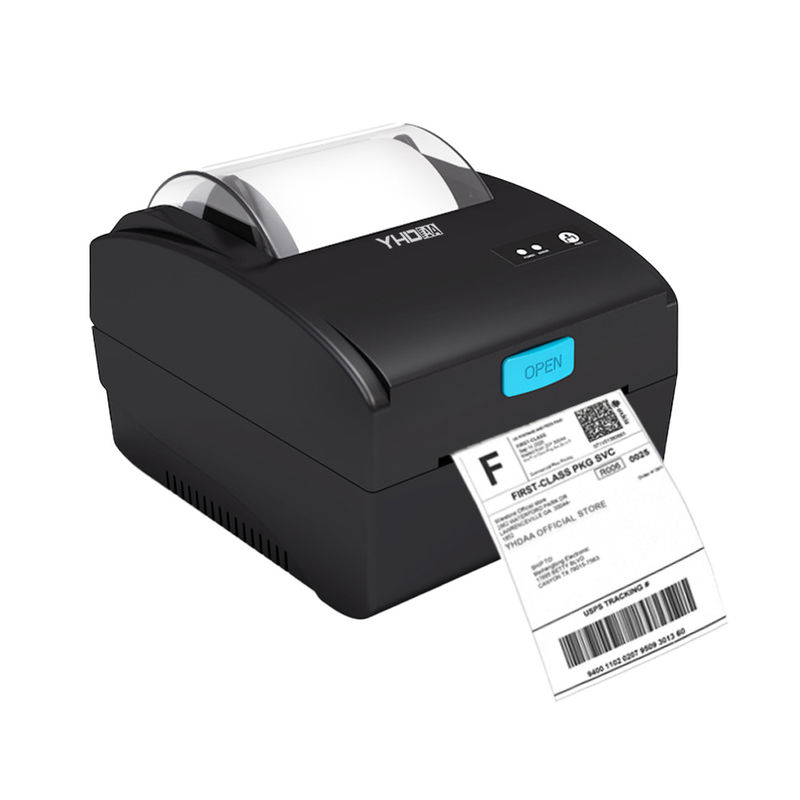

80 MM Thermal Barcode Printer,Bluetooth Thermal Sticker Label Printer Compatible with iOS & Android
Excellent function, high printing speed at 160 mm/s, high resolution 203 dpi, use direct thermal technology, without refilling ink toner, cost saving and convenient.
Features
● Optional interface: USB / USB+LAN / USB+Bluetooth
● Dual Printing Mode: Support thermal paper and thermal label.
● Paper width can be adjusted, support up to 20-80mm width label paper.
● The label printer features high speed, low noise and clear printing.
● Maximum 160mm per second fast printing speed, 203DPI high resolution.
● Quickly position the paper with a dual media sensor to ensure accurate print position.
● Auto printing temperature control, the machine can offer service time and enjoy longer lifetime.
● Wide application area -- suit for manufacturing and warehousing industry, retail, specimen,marking, post package industry, shelf label, price tag, patient identification, mail delivery label, medical industry and more others.
Technical parameters
Interface : USB / USB+LAN / USB+Bluetooth
Print Comand : TSPL command (CPCL/ESC/POS /command)
Print Method : Direct Line Thermal
Pirnt Speed : 160mm/sec
TPH Life : 50KM
Resolution : 203 Dpi(8 Dot/mm)
Print Width : 20-80mm (Max. 576 points)
Compatible OS : Window Systems, Android & iOS Operate Systems
Input : AC 110V/220V, 50～60Hz
Output : DC 24V/1.5A
Paper Type : Continuous paper, Label paper, Folded paper, Tag paper
Available Max Paper Width : 20-80mm
Paper Thickness : 0.06-0.3mm
Max Paper Width : 76mm
Diameter of Paper Warehouse : 100mm (MAX)
Dimension : 200*160*139.5mm
Unit Weight : 1.40kgs (with accessories)
Color : Black
CTN Dimension : 49 x 46 x 36 cm
Pieces Per CTN : 8 Pieces
CTN Gross Weight : 12kgs
Temperature Working : +0 to 50 ℃ Storage: -20 to 60 ℃
Humidity Working : 20%-85% RH Storage: 5%-95%RH
Warantty : 12 months at least
One-dimentional code UPC-A/ UPC-E/ JAN13(EAN13)/ JAN8(EAN8)/ CODEBAR/ ITF/ CODE39/ CODE93/ CODE128,Two-dimensional code,QR Code, PDF417
Driver : Win2003, Win XP, Win 7/8/10/11, MACOS,Support IOS / Android
Packaging Details
Standard List: Printer*1, USB Cable *1, Adapter *1, CD Driver*1, Manual *1, Power cable, Box *1.
Single Package Size: 235*220*175mm
Single Gross Weight: 1.4KG
8pcs/CTN Carton Size:49*46*36cm Carton G.W.:12KG
