Desktop Barcode Scanner
>
|
| Brand Name | YHDAA |
| Certification | CE,FCC,ROHS,IP54,FDA,SGS |
| Model Number | YHD-9200D |

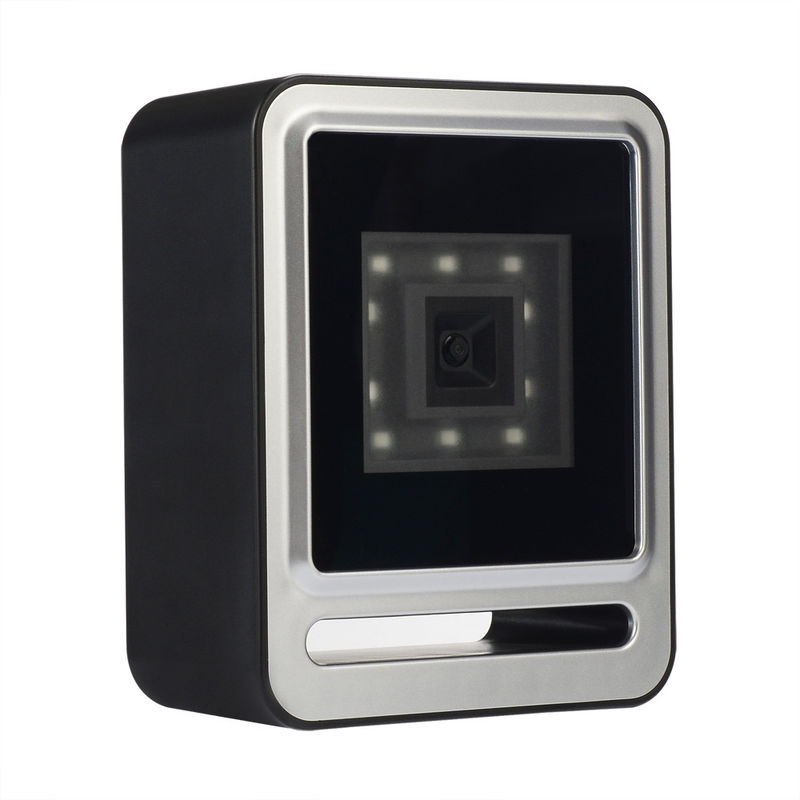

Desktop Barcode Reader Scanning Machine 1D 2D Barcodes For Pos System
The 2D Barcode Scanner is an advanced scanning device that is ideal for supermarkets, retail stores, libraries, and other businesses that need to quickly and accurately read 2D barcodes. It offers an unbeatable combination of scanning speed, scanning resolution, and scanning compatibility. With a scanning speed of up to 500 scans/sec, a scanning resolution of 4mil, and compatibility with multiple systems, it is a perfect choice for any business that needs to quickly and accurately read 2D barcodes. It offers three scanning modes: manual, automatic, and continuous, allowing you to quickly and accurately read any 2D barcode. With its compact size and lightweight design, it is also easy to carry and use. The 2D Barcode Scanner is the perfect choice for any business that needs to quickly and accurately read 2D barcodes.
Features
● Color: Black-Silver/ White-Blue .
● Compatible System - Windows, Mac OS, POS Cash Register, Linux.
● Desktop Hand-Free design free your hand and improve the working efficiency.
● Plug and play, no need for any driver or software. Easy installation with USB cable.
● Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily.
● Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.
● Auto sense ,when the scanner reaches the barcode ,it will automatically decoding the barcode.
● Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Technical Parameters
| Product Specification: YHD-9200D 2D Desktop Barcode Scanner | |
| Scanner parameters: | |
| Optical resolution | 640*480 ,120 fps |
| Lighting source | red LED supplement |
| Scanning speed | 2200 times/s |
| Scanning angle | rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees |
| Sweeping barcode type | paper, thin film medium one-dimensional; mobile phone, flat screen, etc. |
| Printing contrast | 20% |
| Resolution | 4mil |
| Error rate | ≤1/2,000,000 |
| Interface type | USB:HID Keyboard(default mode), USB virtual serial port |
| IP level | up to IP54 standard |
| Trigger Mode | Handheld,Continuous,Auto-Induction |
| Prompt mode | Buzzer, LED |
| Decoding Capability | 1D:Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13,EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code,IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412, etc. |
| 2D:QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc. | |
| Depth of field |
13mil UPC (20-120mm) 5mil Code128 (20-60mm) 10mil Code128 (20-100mm) 20mil QR (20-140mm) |
| Electrical parameters | |
| Electric voltage | 5V DC |
| Working current | 390mA(Max.),220mA(Typical) |
| Optical safety certification | ICE42471,IEC60950 |
| Electromagnetic compatibility | EN55022,EN55024 |
| Mechanical parameters | |
| Size | 110mm*53mm*120mm |
| Cable length | 2m |
| Weight | 300g |
| Enviromental parameter | |
| Working temperature | -20℃～60℃ |
| Storage temperature | -40℃～85℃ |
| Working humidity | 5%～95% |
| Drop test | 1.5m |
Packing and Shipping
Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.
Single Package Size: 185*120*86mm
Single Gross Weight: 0.45kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:15Kg, N.W:13.5Kg
